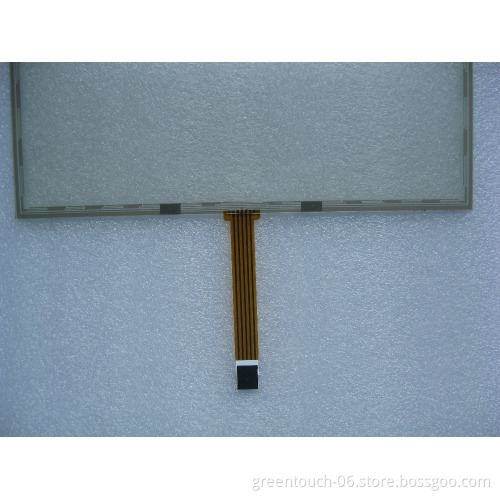

High transparency 17" resistive touch screen 5 wire touch panel for lcd with USB/ RS232 controller

                        5 Wire Resistive Touch panel   Skype:greentouch66     Our Brand: We accept Neutral(No logo). OEM. ODE .       5 wire resistive touch scren over view :   Green Touch 5-Wire Resistive touch screen, features unrivaled accuracy, reliability, superior light transmission, highest touch point density, sensitive and drift-free. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contamination-resistant available. It can be touched by finger, gloved finger, leather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospital, Kiosk or telecom field.     5wire resistive touch screen advantages : Long lifetime (almost ten times of 4 Wire Resistive Touch Screen) Finger, gloved hand and stylus activation Contaminant proof and liquid resistance High accuracy and durability High resolution and sensitivity     5wire resistive touch screen advantages :   Long lifetime (almost ten times of 4 Wire Resistive Touch Screen)   Finger, gloved hand and stylus activation   Contaminant proof and liquid resistance   High accuracy and durability   High resolution and sensitivity       5wire resistive touch screen application :   Point-on-Sale uses: convenience store, movie theater, lottery terminal, fast food, etc   Industrial uses: Automated testing, automation equipment, man-machine interface, etc   Medical uses: medical instrument, research equipment and patient monitoring system   Transportation uses: Inner vehicle control panel     5wire resistive touch screen specification :

No.	Item	specification	No.	Item	specification
1	Resolution	4096 X 4096	14	Surface Hardness	3H
2	Detection method	5 Wire Resistive	15	Operating Temperature	_10°C ~ 60°C
3	Size	10"~22"	16	Operating Voltage	DC5V
4	Aspect ratio	4:3/16:9 /16:10	17	Linearity	<1.5%
5	Input method	Finger or touch pen	18	Operation Pressure	15 ~ 70g
6	Position accuracy	2.5~5mm	19	Message Noise	5 m sec ~ 15 m sec
7	Isolation Resistance	20MΩ↑ @ DC 25V	20	Drivers available	Windows 2000/Windows XP/Win 7 / Win 8/Windows NT/Linux/Mac
8	Optical Clarity	80 %↑	21	Faceplate Surface	Glare hard coating; Anti-Newton ring
9	Endurance Test strikes	Over 1 million	22	Working environment	Under sunlight, indoor and outdoor
10	Resistance	200Ω ~ 900Ω	23	X.Y resistance	100Ω~1000Ω according to the size
11	Certificates	CE, FCC, RoHS	24	Humidity	10%~90% RH at 60°C, non-condensing
12	Storage Temperature	_ 20°C ~ 70°C	25	Relative humidity	10%~90% RH at 40°C, non-condensing
13	Operating Current	5mA ~ 25mA	26	Response time	<10ms

   Products size list : Certification:         Products:     Dimension:       Factory show :
