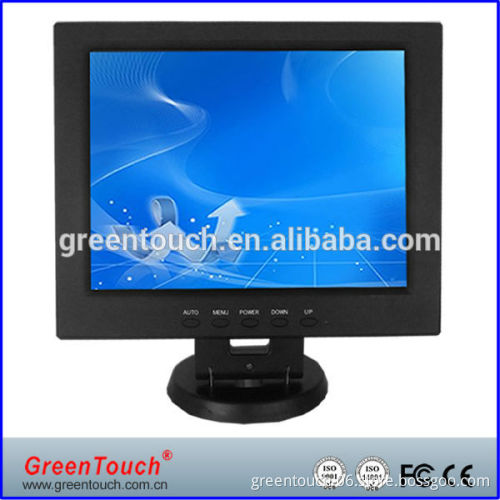

GT 12.1 inch 5 wire Resistive touch screen lcd touchscreen monitor with built in computer

Specifications 1.Finger, gloved hand and stylus activation

2.Contaminant proof and liquid resistance

3.High accuracy and durability

Directly contact way Skype: greentouch5      Our Brand: We accept Neutral(No logo). OEM. ODE .                                       12.1 inch 5 Wire Resistive Touch Screen from GreenTouch   5 wire resistive touch scren over view :   Green Touch 5-Wire Resistive touch screen, features unrivaled accuracy, reliability, superior light transmission, highest touch point density, sensitive and drift-free. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contamination-resistant available. It can be touched by finger, gloved finger, leather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospital, Kiosk or telecom field.     5wire resistive touch screen advantages : Long lifetime (almost ten times of 4 Wire Resistive Touch Screen) Finger, gloved hand and stylus activation Contaminant proof and liquid resistance High accuracy and durability High resolution and sensitivity     5wire resistive touch screen advantages : Long lifetime (almost ten times of 4 Wire Resistive Touch Screen) Finger, gloved hand and stylus activation   Contaminant proof and liquid resistance High accuracy and durability High resolution and sensitivity     5wire resistive touch screen application : Point-on-Sale uses: convenience store, movie theater, lottery terminal, fast food, etc Industrial uses: Automated testing, automation equipment, man-machine interface, etc Medical uses: medical instrument, research equipment and patient monitoring system Transportation uses: Inner vehicle control panel   5wire resistive touch screen specification :

No.	Item	specification	No.	Item	specification
1	Resolution	4096 X 4096	14	Surface Hardness	3H
2	Detection method	5 Wire Resistive	15	Operating Temperature	_10°C ~ 60°C
3	Size	10"~22"	16	Operating Voltage	DC5V
4	Aspect ratio	4:3/16:9 /16:10	17	Linearity	<1.5%
5	Input method	Finger or touch pen	18	Operation Pressure	15 ~ 70g
6	Position accuracy	2.5~5mm	19	Message Noise	5 m sec ~ 15 m sec
7	Isolation Resistance	20MΩ↑ @ DC 25V	20	Drivers available	Windows 2000/Windows XP/Win 7 / Win 8/Windows NT/Linux/Mac
8	Optical Clarity	80 %↑	21	Faceplate Surface	Glare hard coating; Anti-Newton ring
9	Endurance Test strikes	Over 1 million	22	Working environment	Under sunlight, indoor and outdoor
10	Resistance	200Ω ~ 900Ω	23	X.Y resistance	100Ω~1000Ω according to the size
11	Certificates	CE, FCC, RoHS	24	Humidity	10%~90% RH at 60°C, non-condensing
12	Storage Temperature	_ 20°C ~ 70°C	25	Relative humidity	10%~90% RH at 40°C, non-condensing
13	Operating Current	5mA ~ 25mA	26	Response time	<10ms

  Products pictures :   Products size list :     Products Certification:         Factory show :
