17" PCAP/ Interactive Projected capacitive touch screen (G+G Structure) for 10.4''-24''touch monitor Kiosk

     5"-32" Capacitive touch screen     Product Description:   Green Touch now developed a single point and multi-point capacitive touch screen, mainly in G + G and G + P structure-based, covering the 5 inch to 32 inches (supports customizable), supports 10-touch, slide, flip, etc. function. 10:00 real touch points to support handwriting, pen function, the focus for educational, medical, computer machine, automotive and other industrial applications. Product Category:

Size	Thickness(mm)	Application IC	Structure	Interface
5"-10.1"	1.25	SLV,FT	G+P/G+P/G+F/G+F+F	I2C/USB
10.4"-32"	2.0-3.3	EETI/EM	G+G/G+P	USB/R232

    System Type:

Size	Windows XP	Win7	Win8	Android	Linux	MAC
5"-10.1"		Support	Support	Support	Support
10.4"-32"	Support debug	Driver free	driver free	Support debug	Support debug	Support debug

    Product Applications:   n Consulting appliances   Electronic watches, electronic manual, Tablet PC, PDA,    MP3, MP4, tablet   n Communication Equipment   Online game console, STB video phones, fax machines, telephones, smart phones, GPS   n Household appliances   Portable LCD TVs, air conditioners, refrigerators, computers, one machine, audio- visual and home appliances by remote control   n Entertainment equipment   Keyboards, handheld amusement machine, languages learning   n Medical Equipment   Electronic blood pressure monitors, electronic thermometers, electronic scales   n Equipment   Multimeter, logic analyzer, decibel meter, photometer     Product advantages:   n Antistatic ability, aesthetic design   n Touch intensity small, high transmittance   n Support for I2C, USB, IPS and R232 Interface   n High definition, waterproof, fog   n Support for single and multi-point touch   Product Specifications:

Dimensions	5”-32”
Structure	G+G/G+P
Drive mode	COB/COF
Proportion	16:9/4:3
Thickness	1.25-3.3mm
Surface hardness	6H
Transmittance	>90%
Working temperature	-30 ℃ ~ +75 ℃
Storage temperature	-40 ℃ ~ +85 ℃
Humidity	90% at 60℃
Linearity	1PT:+/-1mm,10PT:+/-2.5mm
Touch life	> 100,000,000 times
Maximum resolution	4096×4096
Maximum support points	Max,10 points
Controller Type	PCBA control board
Connection	I2C/USB/RS232
Host Interface	USB, 4 wire, 2.0 Full speed
Operating Voltage	USB 5VDC
Power consumption	Active Mode:<30mA,Idle Mode:5mA
Oscillation frequency	12MHz
Reaction time	<10ms
Read speed	100 MHz
Antistatic air discharge	8KV
Antistatic. Contact Discharge	4KV
Adapter ripple	Vpp<50mv

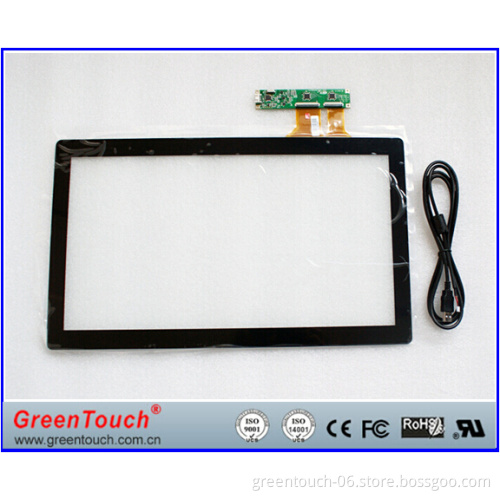

    Product Picture:   Small size package diagram:   Large size Package Figure:   Certificate:   Shipping and payment methods:   Factory shown:   Ms.Julia   Skype:greentouch020   P: +8613827465009     Whatsapp:+8613927454208    QQ:2355562941   Web:http://www.greentouch.com.cn
