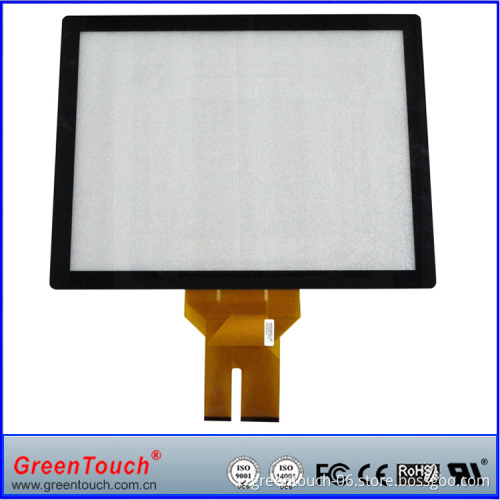

15" surface/projected capacitive touch screen

5”-32”Capacitive touch screen Product Description: Green Touch now developed a single point and multi-point capacitive touch screen, mainly in G + G and G + P structure-based, covering the 5 inch to 32 inches (supports customizable), supports 10-touch, slide, flip, etc. function. 10:00 real touch points to support handwriting, pen function, the focus for educational, medical, computer machine, automotive and other industrial applications.   Product Category:

Size	Thickness(mm)	Application IC	Structure	Interface
5-10.1''	1.25	SLV,FT	G+P/G+P/G+F/G+F+F	I2C/USB
10.4-32''	2.0-3.3	EETI/EM	G+G/G+P	USB/R232

  System Type:

Size	Windows XP	Win7	Win8	Android	Linux	MAC
5”-10.1”	/	Support	Support	Support	Support	/
10.4"-32”	Support debug	Driver free	driver free	Support debug	Support debug	Support debug

    Product Applications:    * Consulting appliances Electronic watches, electronic manual, Tablet PC, PDA, MP3, MP4, tablet * Communication Equipment Online game console, STB video phones, fax machines, telephones, smart phones, GPS *  Household appliances Portable LCD TVs, air conditioners, refrigerators, computers, one machine, audio-visual and home appliances by remote control *  Entertainment equipment Keyboards, handheld amusement machine, languages learning *  Medical Equipment Electronic blood pressure monitors, electronic thermometers, electronic scales *  Equipment Multimeter, logic analyzer, decibel meter, photometer                                                                                                                                                                                                                                                                                                                                                                                                                                                            Product advantages: *  Antistatic ability, aesthetic design *  Touch intensity small, high transmittance *  Support for I2C, USB, IPS and R232 Interface *  High definition, waterproof, fog *  Support for single and multi-point touch   Product Specifications:

Dimensions	5”-32”
Structure	G+G/G+P
Drive mode	COB/COF
Proportion	16:9/4:3
Thickness	1.25-3.3mm
Surface hardness	6H
Transmittance	>90%
Working temperature	-30 ℃ ~ +75 ℃
Storage temperature	-40 ℃~ +85 ℃
Humidity	90% at 60℃
Linearity	1PT:+/-1mm,10PT:+/-2.5mm
Touch life	> 100,000,000 times
Maximum resolution	4096×4096
Maximum support points	Max,10 points
Controller Type	PCBA control board
Connection	I2C/USB/RS232
Host Interface	USB, 4 wire, 2.0 Full speed
Operating Voltage	USB 5VDC
Power consumption	Active Mode:<30mA,Idle Mode:5mA
Oscillation frequency	12MHz
Reaction time	<10ms
Read speed	100 MHz
Antistatic air discharge	8KV
Antistatic. Contact Discharge	4KV
Adapter ripple	Vpp<50mv

    Product Picture:       Small size package diagram:   Large size Package Figure:   Product Certificate: Delivery and Payment way :       Factory shown:
