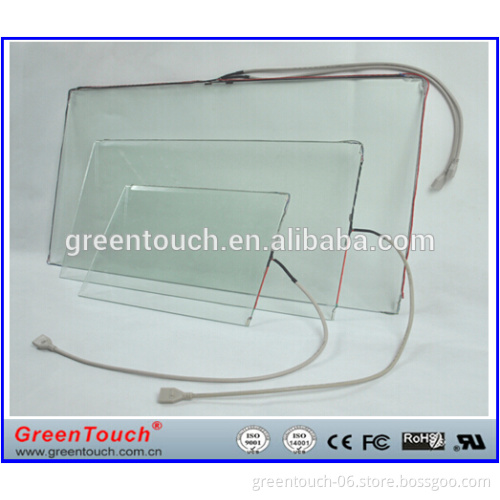

GT-SAW-30C-4K 30" touch glass SAW touch screen kiosk touch screen for POS ATM Machine Industrial Machine Kiosk

Product Description        GreenTouch Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.
      GreenTouch Surface Acoustic Wave (SAW) touch  glass panel with a series of transducers and reflectors. When a causing a touch event to be detected at that point. SAW information kiosks and other high traffic indoor
screen is based on sending acoustic waves across a clear
finger touches the screen, the waves are absorbed,
touch screen technology is recommended for public
environments.
POS ATM Machine Industrial Machine Kiosk
POS ATM Machine Industrial Machine Kiosk
Product Specs Touch Screen Technology Technology : surface acoustic wave technology
Dimension : 7"-42"(can be selected)
Resolution : 4096 x 4096 ,Z-axis 256
Material : electronic glass
Sensor position: 0.5mm (glass bevel,0.5mm above the surface)
Positioning accuracy: < 2mm
Transmittance : >92% /ASTM
Touch intensity : 30g
Touch life time: > 50,000,000
Surface hardness: Mohs' 7
Multi touch: (single or fake 2points touch) can be selected
Operating Temperature: -10°C to +60°C
Storage Temperature : -20°C to +70°C
Humidity: 10%-90% RH / 40°C
Work latitude : 3800m
Full set: Connected line,double-adhesive tape,dust-proof line, touch screen,controller.
Certificate: CE, FCC, RoHS:
Controller Spes Controller type : Standard or ELO (can be selected)
Interface : USB or RS232 (can be selected)
Dimension: 85mm×55mm×10mm
Working voltage: 12V±1V or 5V±0.5V (can be selected)
working current: 80MA
Maximum current : 100MA
Reaction time :≤16ms
Operating Temperature : 0-65℃
Humidity : 10%-90%RH
Storage Temperature :-20℃-70℃
MTBF: > 500,000 hours
Operating system :
SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA
SetupX64: Win7 64,Linux(support Various versions):Ubunut/Redhat/FC/Suse etc
Android: 2.30,4.0 etc.((can use driver-free controller directly))
WinCE:WinCE 5.0/ WinCE 6.0
Controller of LED diagnostic features:Flash Frequency
Function :The long light goes out after 5 seconds
                  The controller power-on self-test
                  Slow flashing
                  Normal operation, no touch
                  Fast flashing
Touch the state : Power-on
                               The touch screen not be found
FAQ Q: What system it support ?
A: compatible with Win7/8, Android, Linux and ELO

Q: What is your MOQ?
A: 1pcs

Q: Which certificates passed ?
A: CE,FCC,RoHs.

Q: How proceed the order?
A: online or offline

Payment terms: TT, Western Union, PAYPAL, Trade Assurance
1) For sample order : 100% T/T, Western Union, Paypal.
2) For bulk order more than ten thousand dorllors : 50% Deposit T/T Blance before goods ship out.

Q: What is your guarantee period?
A: All touch screen 1years warranty.

Q: What is your delievey time ?
A: Sample order : within 1-3days, 5-12working days for bulk production after confirmed.

Q: What HS Code for your products?
A: touch screen: 8471609000

Q: what's the direct contact way ?
A: Skype/Linkedin: greentouch5
     Tel: +86 13827465009      Wechat/Whatapp: +86 13714878046 or send inquiry through email or just click below " send " to send message to us.
