GT-SAW-15.1N-4FS 15" transparent touch glass SAW touch screen elo touch screen for POS ATM Machine Industrial Machine Kiosk

GreenTouch ELO transparent glass standard SAW touch screen kits Product Description Professional Website: http://www.greentouch.com.cn and click here Hot Tel/Wechat : +86 013827465009, Skype: greentouch5  Surface Acoustic Wave (SAW)Touch Screen description:          GreenTouch Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.       GreenTouch Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments.       SAW touch screen Type classification :

Touch screen type	Touch screen size	Thickness of glass	Material
Standard SAW touch screen	10.4-42’’	3mm,4mm,6mm	Pure glass
Multi-touch SAW touch screen	10.4-24’’	3mm,4mm,6mm	Pure glass
Vandal-proof SAW touch screen	10.4"-19"	4mm,6mm	Pure glass
Water/Dust-proof SAW touch screen	15”/17”/19’’ 4:3	3mm,4mm,6mm	Plastic frame
Vandal/Water-proof SAW touch screen	15”/17”/19’’ 4:3	4mm,6mm	Plastic frame
Anti-glare SAW touch screen	10.4”-42”	3mm,4mm,6mm	Pure glass
Vandal/Water/Glare/Dust-proof  SAW touch screen	15”/17”/19” 4:3	3mm,4mm,6mm	Aluminum frame

  Product Overviews Specification

Technology	surface acoustic wave technology
Dimension	10.4"-19"(can be selected)
Resolution	4096 x 4096 ,Z-axis 256
Material	electronic glass (anti-glare,anti-vandal,anti-water,anti-dust can be selected)
Sensor position	0.5mm (glass bevel,0.5mm above the surface)
Positioning accuracy	< 2mm
Transmittance	>92% /ASTM
Touch intensity	30g
Touch life time	> 50,000,000
Surface hardness	Mohs' 7
Multi touch	(single or fake 2points touch) can be selected
Operating Temperature	-10°C to +60°C
Storage Temperature	-20°C to +70°C
Humidity	10%-90% RH / 40°C
Work latitude	3800m

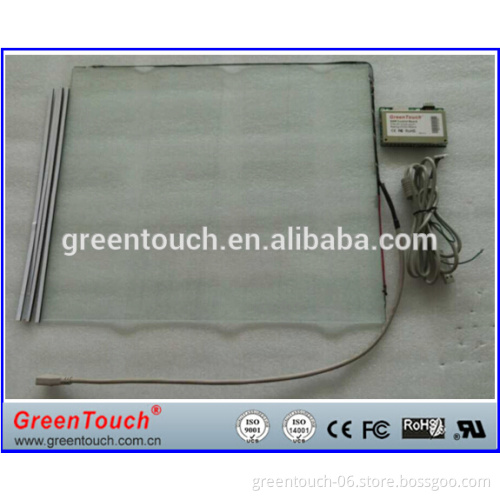

Full set	Connected line,double-adhesive tape,dust-proof line, touch screen,controller.
Certificate	CE, FCC, RoHS
Controller specification:
Controller type	Standard or ELO (can be selected)
Interface	USB or RS232 (can be selected)
Dimension	85mm×55mm×10mm
Working voltage	12V±1V or 5V±0.5V (can be selected)
working current	80MA
Maximum current	100MA
Reaction time	≤16ms
Operating Temperature	0-65℃
Humidity	10%-90%RH
Storage Temperature	-20℃-70℃
MTBF	> 500,000 hours
Operating system    (Support)	SetupX86:WindowsXP,WindowsXPE,Win7 32,Windows VISTA SetupX64: Win7 64 Linux(support Various versions):Ubunut/Redhat/FC/Suse etc Android:2.30,4.0 etc.((can use driver-free controller directly)) WinCE:WinCE 5.0/ WinCE 6.0
Controller of LED diagnostic features:
Flash Frequency	Function
The long light goes out after 5 seconds	The controller power-on self-test
Slow flashing	Normal operation, no touch
Fast flashing	Touch the state
Power-on	The touch screen not be found

  Feature and Use area SAW touch screen advantage: n high quality, high resolution and light transmittance n once calibrated, never drift n Z axis pressure recognition, only the intensity of the touch sensor to prevent misuse n long working life, not afraid of hard objects n short reaction time n compact, easy to install n Can be customized according to customer requirements Screen Size     SAW touch screen application:           n Open frame touch monitor     nSelf-service kiosks     nVending and ticket sales     nElectronic catalogs     nGaming, lottery, and amusement     nPublic pay phones     nMultimedia marketing     nBanking/financial transactions     nIndustrial control rooms     nComputer-based training      Related Products Please Click here to know more touch products which may interested by you and contact us, Thank you for your concern !   FAQ Q: What system it support ? A: compatible with Win7/8, Android, Linux and ELO
  Q: What is your MOQ? A: 1pcs   Q: Which certificates passed ?  A: CE,FCC,RoHs.   Q: How proceed the order?
A: online or offline     Payment terms: TT, Western Union, PAYPAL, Trade Assurance
   1) For sample order : 100% T/T, Western Union, Paypal.
   2) For bulk order more than ten thousand dorllors : 50% Deposit T/T Blance before goods ship out.   Q: What is your guarantee period?
A: All touch screen 1years warranty.   Q: What is your delievey time ? A: Sample order : within 1-3days, 5-12working days for bulk production after confirmed.   Q: What HS Code for your products?
A: touch screen:  8471609000
  Q: what's the direct contact way ?  A: Skype: greentouch5     Tel/Wechat : +86 13827465009     or send inquiry through email or just click below " send " to send message to us.
