21.5 inch water proof saw touchscreen panel

Specifications Standard saw touch screen panel

1.size available: 10.4"~46"

2.support single or dual touch

3.CE,FCC,ROHS

4.Warranty:1year

SAW touch screen with usb/rs232 controller view :           GreenTouch Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touch screen.
   Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments.       SAW touch screen advantage:         > Can withstand more than 35000000 point
> 4096x4096 Resolution, USB or RS232 Interface
> Superior image clarity with high light transmission
> High accuracy and sensitivity
> Glass Material,Durability, deep scratch resistance and abrasion
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification       SAW usb touch screen with usb/rs232 controller  specification :

Interface Type:	USB or RS232
Resolution	4096x4096
Screen Ratio	4:3/16:10
Material	Glass
Certificates	CE, FCC, RoHS
Input method	Finger or touch pen
Position accuracy	2~5mm
Operating Voltage	DC ≤10V
Operating current	5~25mA
Response time	Less than 10ms
Touch action force	30~80g
Operating temperature	-10°C~60°C
Storage temperature	-40°C~70°C
Surface hardness	≥5H
Working environment	Under sunlight, indoor and outdoor
Transparency	≥90%
Isolation resistance	≥20MΩ DC 25V
The number of hits	≥35,000,000/point
Warranty	1 year
Support Systems	Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

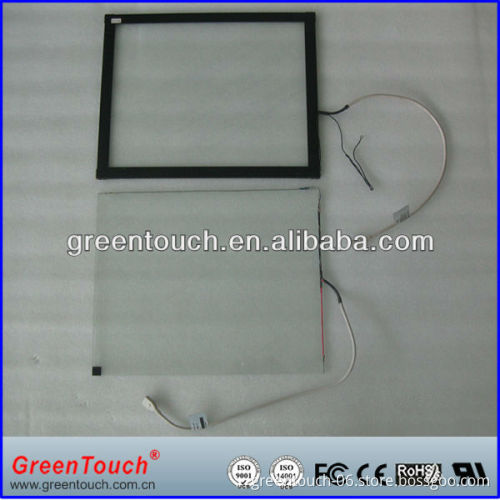

  SAW USB touch screen with usb/rs232 controller advantages :       Superior image clarity with high light transmission  Sensitive and fast response  Durability, deep scratch resistance and abrasion  Highest resolution  Activated by finger, gloved hand, leather or soft stylus  More than 50 million touches in a single point  Dirt and splash sealed capability     SAW usb touch screen with usb/rs232 controller application :     Open frame  Self-service kiosks  Vending and ticket sales  Electronic catalogs  Gaming, lottery, and amusement  Public pay phones  Multimedia marketing  Banking/financial transactions  Industrial control rooms  Computer-based training       SAW usb touch screen with usb/rs232 controller pictures :                SAW usb touch screen usb/rs232 controller Certifications :        Shipping & Payment :      And also accept by Sea ,Air .or sending with your own forwarder       Why Choose us ?            1.Professional manufacturer in R&D, manufacturing, marketing and service of TOUCH SCREEN for 8 years.  2.High quality certificate (CE,ROHS,FCC)        Our products have aging test at least for a continuous 48-72hours before being deliveried.  3.Product warranty for 1-4 years.  4.Sufficient stock for your urgent demand.  5.Within 12 hours reply guarantee.      Factory show :               Hope to set up friendly business relationship with all of you.Your comments on our products and any  information from your market will be highly appreciated.
