Low level indication level switch of hydraulic fluid in equipment and vehicles

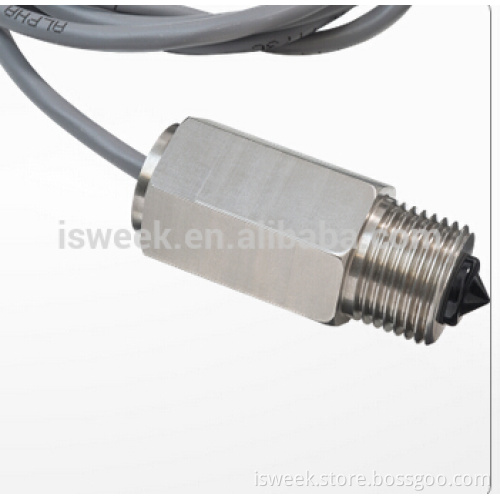

 Low level indication level switch of hydraulic fluid in equipment and vehicles Description The LLHP Configurable Liquid Level Sensor range provides a robust, reliable miniature industrial sensor where the customer selects the housing, electrical configuration and termination. Additionally, customer specific electronics can be added to allow alarms, delays and other intelligent electronics to be incorporated within the body of the sensor. Applications Typical applications for the LLHP Configurable Fluid Level Sensor range are; Engine coolant/oil levels Pump leak/running Machine oil/coolant levels Hydraulic systems Marine bilge levels Off road & agriculture vehicles Low level indication level switch of hydraulic fluid in equipment and vehicles Specifications

Housing/Mounting Style	1/2" BSP 1/2" NPT 3/8" BSP or Customer Specified
Housing Tip Material	Polysulphone Tip Stainless/Brass or Customer Specific Housing Material
Temperature Range	-25 to +80°c
Extended Temperature Range	-40 to +125°c
Supply Voltage	5-12Vdc or 10- 45Vdc
Output Current	10mA to 800mA
