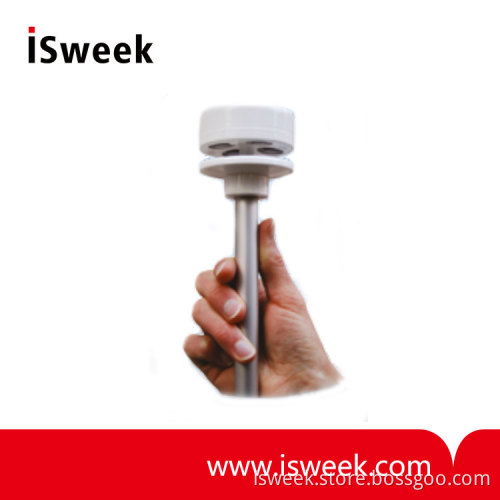

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Description

SONIC-ANEMO-SDI is made from the CV7-V to which a SDI12 protocol and optimizing electrical consumption has been added. Sample rate is 2 Hz.
This ultrasonic wind sensor operates in a request-response mode.
This product is more energy-efficient than standard units.
The SONIC-ANEMO-SDI is dedicated to meteorological applications.

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Available data:
- Average speed and direction over 10 minutes
- Minimum wind speed and direction for that period
- Maximum wind speed (gust 3s) and direction for that period
- Software version and serial number
- Data measurement quality rate from the sensor
- Data for sensor diagnostic (manufacturer use only)

SONIC-ANEMO-SDI Ultrasonic Wind Speed Sensor Specification:

Options

These industrial option are "Din" boxes with:
• 1x connection for 24VDC/AC power supply
• 1x connection for CV7-V data
• 1x 12 V connection for CV7-V power supply
• Galvanic isolation betwen power supply and analog outputs
• Galvanic isolation betwen power supply and sensor's power supply
• The sensor input is optocoupled.

420 AC

This option features :
• 1 4-20 mA output loop current for wind speed ranging from 0.25 Kts to 80 Kts and CV7 measurement check.

• 1 4-20 mA output loop current for wind direction ranging from 0 to 359° and CV7 measurement check.
• 2 Dry contacts for wind speed alarm

ANA-AC

This option features 3 outputs 0-10V:
• 0-15m/s
• 0-30m/s or 0-40m/s selectable
• 0-359° wind direction.
