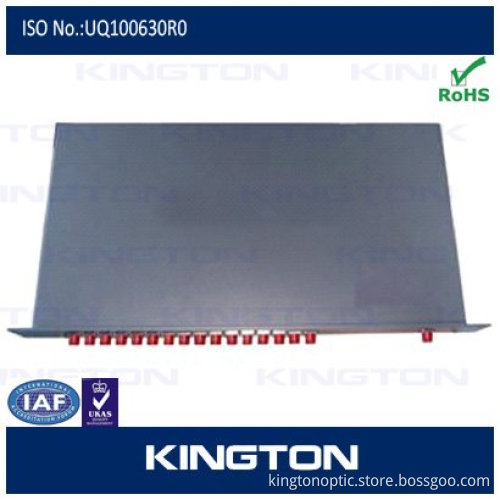

1*2 ,1*4 ,1*8 ,1*16,1*32,1*64 with Rack mount Fiber Optic PLC Splitter

Specifications low insertion loss,

low polarization dependent loss,

high port uniformity.

1*N,2*N PLC splitter

optic PLC splitter

Fiber PLC Splitter bare fiber splitter   mini module PLC spiltter  with fan-out plc splitter  box module splitter  rack-mountable plc splitter LGX box plc splitter wall box splitter FOSC plc splitter  plc-splitter-tray Description: PLC splitters are based on the Planar
Waveguide Technology. They provide a cost
effective and space saving networking
solution. They are key components in FTTX
networks and are responsible to distribute
the signal from central office to numbers of
premises. They have very wide range of
operating wavelength from 1260nm to
1620nm. With it’s compact size, these
splitters can be utilized in in-ground and
aerial pedestals as well as rack mount
systems.   Features: Low Insertion loss Low PDL High Return Loss Uniform Power Splitting Compact Design Wide Operating Wavelength Wide Operating Temperature Excellent Environmental & Mechanial Stability Qualified Under Telcordia GR-1221 and GR-1209   Applications: FTTX (FTTP, FTTH, FTTN, FTTC) Passive Optical Networks (PON) Local Area Networks (LAN) CATV systems Test Equipments     Performance Specifications:

Item	Parameter
Product Type	1X2	1X4	1X8	1X16	1X32	1X64
Insertion Loss(dB)	3.8	7.5	10.5	13.5	16.5	21
Uniformity(dB)	0.5	0.5	0.5	1	1	1.5
Package Dimensions(W*H*L)(mm)	4*4*40			4*7*50		4*12*60
Max. PDL(dB)	0.2
Max. TDL(dB)	0.5
Min. Return Loss(dB)	50
Min. Derectivity(dB)	55
Wavelength Dependent Loss(dB)	0.8
Operating Temperature(°C)	(-40°C~85°C)
Storage Temperature(°C)	(-40°C~85°C)
Operating Wavelength(nm)	1260~1650
Fiber Type	SMF-28e XB
In/Out Connector	FC/UPC,SC/UPC,LC/UPC etc
