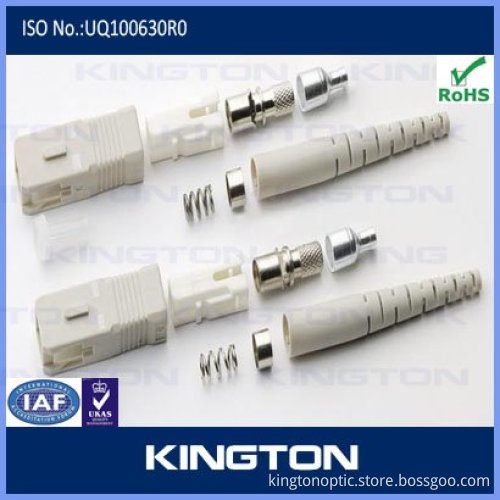

SC UPC Multi-mode optical fiber connectors

Specifications FC, SC, ST, LC, DIN, MTRJ, etc.

Zirconia ferrules for FC, SC ,ST, LC and DIN fiber optic connectors

SM and MM

Durable

SC UPC Multi-mode optical fiber connectors     Fiber optic boot

FEATURE :
Low insertion loss and back reflection loss
Free-floating ceramic ferrule
UL-rated plastic housing and boot
Boots in a variety of colors
High precision alignment

AVAILABILITY :
-The connector can be supplied as a pre-assembled one-piece connector or as connector kits.
-Clips are available for SC and LC duplex connectors
Housing kits without ferrule are available.
-PC and APC are available

SPECIFICATIONS:
Insertion Loss: Single mode l≤0.20dB & Multimode ≤0.25dB
Return Loss: UPC ≥50 dB, SPC ≥55 db & APC ≥65 dB
Durability <0.20 dB typical change, 1000 mating
Operating Temperature: -40 to + 80º C
Ferrule Hole Sizes:
Single mode: 125.0+1/-0μm, Concentricity: ≤1.0μm, 125.5+1/-0μm, Concentricity: ≤1.0μm, 126.0+1/-0μm, Concentricity: ≤1.0μm
Multi mode: 125μm, Concentricity: 1≤3μm or 127μm, Concentricity: 1≤3μm or 128μm, Concentricity: 1≤3μm
