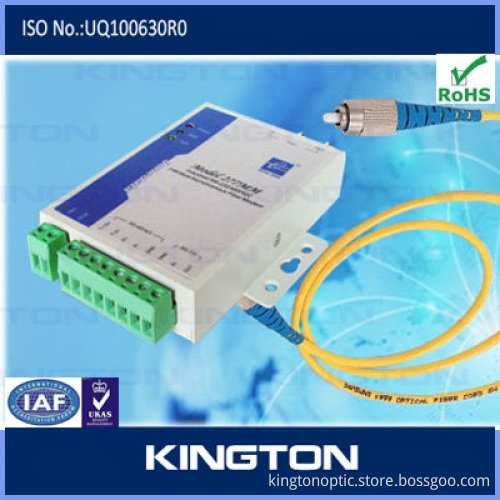

copetitve price fiber optic Media Converter

Get Latest Price

Payment Type:: T/T

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 4 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)
Supply Ability:	50000 Piece/Pieces per Month month
Payment Type:	T/T

Product Description

Specifications Media Converter

1.10/100/1000M converter

2.EMC:Compliant FCCPart15

3.Connector:SC/FC/ST

4.Power:External/Internal

Features

·Supports SNMP management (only for management device)

MDI-MDIX Auto-crossover supported
·Plug-and-Play installation
·Support Jumbo frame (64-9216 Byte)
·Support Voltage Monitor
·Support full/half duplex auto-negotiation
·Provides one RJ-45 twisted pair 1000Mbps Ethernet port and one 1000BASE-Fx port
·Comply with IEEE802.3z 1000Base-SX/LX &IEEE 802.3ab 1000Base-T
·LED indication: 1000M,FX, POW, TXD, FRX, FDX/HDX

Description
10-100-1000M designed to fit the emerging deployment needs of optical fiber network. This stand-alone converter allows you to connect Gigabit twisted-pair network to optical-fiber network easily and cost effectively to a maximum distance 120KM.
10-100-1000M is fully compliant with IEEE 802.3z & 802.3ab standards. The Installation & operation procedures of the -10-100-1000M are simple & straightforward. User can monitor the real time operation status easily via a set of LEDs located in the front panel

Specification

Standard
IEEE 802.3z 1000Base-/LX
IEEE 802.3ab 1000Base-T

Interface
1000Base-T : 1 x RJ45 Interface
1000Base-LX : 1 x SC Interface

LED
1000M,FX,POW,TXD,FRX,FDX/HDX.

Power
Ext. Power Supply, DC 5V, 1.5A
50, 60 Hzt
Power consumption: 6 W

Typical Operation &
Storage Temperature
Operation:0° ~ 70°C
Storage Temperature: -40° ~ 85°C
Humidity:5% ~ 90% non-condensing

Dimension and Weight
Size: 118x138 x 30mm (WxDxH)
Shipping Weight: 0.6KG

Emission/Safety
FCC Class A, CE
*

Typical Optical Power Budget

TYPE	10-100-1000M-MT	10-100-1000M-SM	10-100-1000M-LH	10-100-1000M-LW	10-100-1000M-MT
Connector Type	SC	SC	SC	SC	SC
Wavelength	850nm	1310nm	1310nm	1310nm	1550nm
Typical Distance	550m	20Km	40Km	60Km	80Km
Min TX PWR	-9.5dBm	-9.0dBm	-6.0dBm	-5.0dBm	-5.0dBm
Max TX PWR	-4.0dBm	- 3.0dBm	-1.0dBm	0.0dBm	0.0dBm
Sensitivity	-18dBm	-21.0dBm	-21.0dBm	-24.0dBm	-24.0dBm
Link Budget	8.5dB	12.0dB	15.0dB	19.0dB	19.0dB
