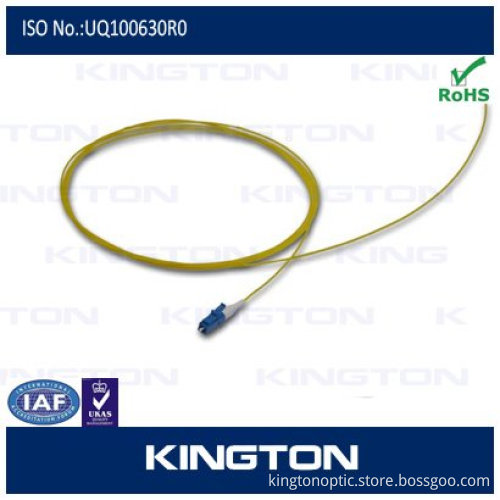

Simplex 0.9mm Fiber Optic Pigtail(LC)

Specifications fiber pigtail

Low insertion loss

- Low back reflection loss

- Custom defined specification

- Easy installation

Simplex 0.9mm Fiber Optic Pigtail(LC) Description Single mode pigtails Available in: SPC (Super Physical Contact), UPC (Ultra Physical Contact) or APC (Angled Physical Contact)
Fiber type: G652.D, G655 and G657.A
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection   Multi mode pigtails Fiber types: OM1, OM2 and OM3
Construction of secondary protection: tight or loose
Available in 12 colours of primary and secondary protection   Environmental Reliability Test   The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others   Key Features Low insertion loss Low return loss Various connector types available Easy instalation Environmentally stable Applications Fiber Optic Telecommunications LAN (Local Area Network FTTH (Fiber To The Home) CATV&CCTV High speed transmission systems Fiber optic sensing Specifications

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC        Duplex MTRJ/Female, MTRJ/Male
Fiber Type	9/125 SMF-28 or equivalent (Singlemade) OS1 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G  (Multimode) OM3
Cable Type	Simplex, Duplex (Zipcord) Φ3.0mm, Φ2.0mm, Φ1.8mm Φ1.6mm PVC or LSZH Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (For Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement (For Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1
