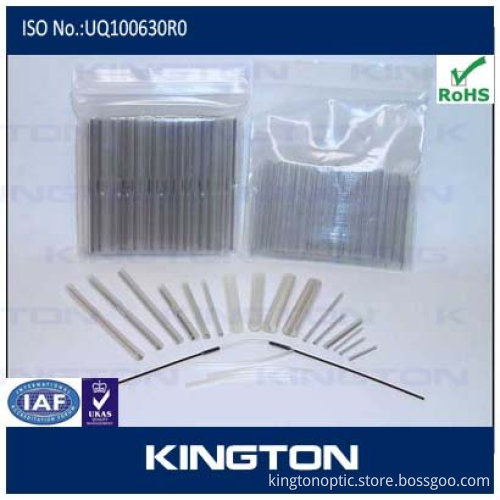

Fiber Splice Protection Sleeves

Specifications Fiber Splice Protection Sleeves

1)Optic Fiber Protective Sleeve

2)Length:40mm,45mm,60mm

3)Single fiber,single stainl steel

  Fiber optic heat shrink tube Fiber Splice Protection Sleeves Fiber Optic cable protection Sleeve Optic Fiber Protective Sleeve   Fiber Protection sleeve is used for protecting and supporting the fusion splice point. Single fiber to maximum 12 fibers protection sleeves are available from us. The outer jacket of the sleeve is made of polyolefin while the inner tube is made of EVA. The minimum shrinking temperature is 100 °C.     Description:   Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.   The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.   Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).     Mass type sleeve materials Hot melt adhesive Ceramic reinforcement member Heat shrinkable tube   Single type sleeve materials Hot melt adhesive Heat shrinkable polyolefin Stainless steel needle   Technical Data:

Properties	Test Method	Typical Data
Tensile StrengthMPa	ASTM D 2671	18
Ultimate Elongation (%)	ASTM D 2671	700
Density(g/cm2)	ISO R1183D	0.94
Dielectric Strength (KV/mm)	IEC 243	20
Dielectric Constant	IEC 243	2.5
Longitudinal Change (%)	ASTM D 2671	+5
