waterproof fiber optic pigtail cable

Specifications waterproof pigtail fiber optic cable

1.100% inspection

2.Prompt delivery

3.Quality assurance

  waterproof pigtail fiber optic  pigtail cable   Detailed Product Description:    Features *Low insteration loss&high return loss *Good repeatability&interchangeability *PC/UPC/APC poloshing *FC/SC/ST/LC/MU connector *Suitable for high-speed ,high-capacity optical fiber tranmission system *Provide singlemode/multimode pactch cord&pigtails *Fiberdiameter:Φ 0.9/2.0/3.0mm *Length/Type:as customers' demand   Application *Optical fiber communications system *Optical fiber access networks *Optical fiber CATV *Optical fiber test equipments *Optical fiber data communication

NO.	Item	Unit	Single Mode			Multi-Mode
1	Insertion Loss	dB	≤0.2	≤0.3		≤0.3
2	Return Loss	dB	≥50/UPC	≥45/PC	≥65/APC	≥35/PC
3	Repeatability	dB	0.1
4	Working Times	Times	≥1000
5	Operating Temperature	°C	-40-85
6	Optical Cable Diameter	mm	Φ0.9	Φ2.0		Φ3.0



Item		PC Polishing			APC Polishing
Ferrule Diameter(mm)		2.5		1.25	2.5	1.25
Radius of Cury(mm)		10 ~25		7~25	5~15
Fiber Height(nm)		-100~50			±50
Apex Offset(um)		±50			±50

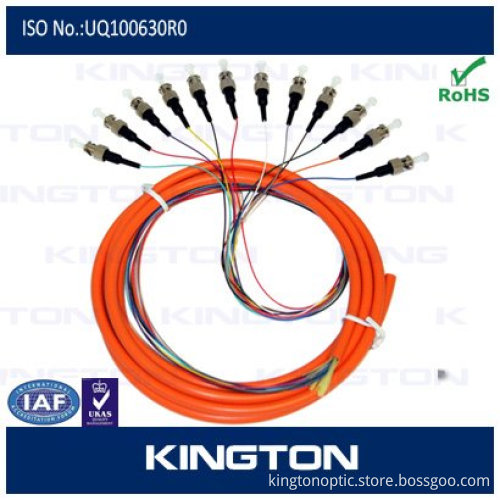

  Pictures:
