21.5 Inch Industrial Plastic Shell Medical Touch Display
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong |
|---|---|
| Productivity: | 5000 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Product Description
Product Description

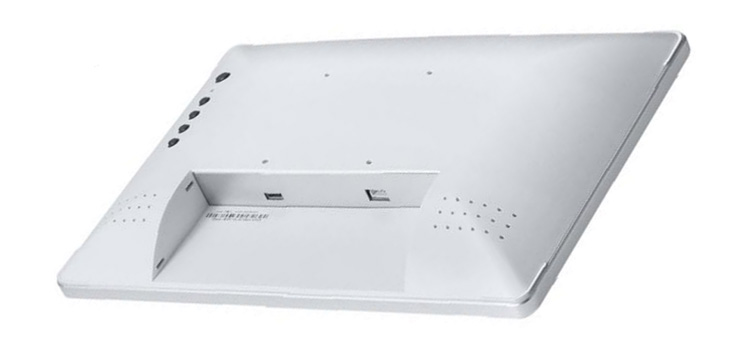

Medical Display Monitor
Key Feature
●Streamlined plastic shell
●Pure plane appearance, front frame waterproof and dust-proof
●Commercial LCD, LED energy-saving backlight
●FHD Resolution 1920X1080@60Hz
●Wide screen and full view, the best display effect
●10 point projection Capacitive touch screen
●Anti riot and fingerprint processing of touch cover
●Industrial grade A/D board, anti electromagnetic interference
●Multi video signal interface: DP+HDMI+VGA
●VESA wall mounting hole
●Support OS: Windows/Android/Linux
Medical Monitors
Optional
*None Touch Screen
*Peep-proof protection film
*Anti-Reflection
*All in One （Android）
Medical Monitoring
Medical Displays
Specification
| LCD Display | Size | 21.5 inch |
| Aspect Ratio | 16:09 | |
| Active Area | 476.64X268.11((mm) | |
| Resolution Ratio | FHD 1920X1080 @60Hz | |
| Number of colors | 16.7M Colors | |
| Response Time | 14ms | |
| Brightness | 300 cd/m2(LED), 275 cd/m2(PCAP Touch) | |
| Contrast Ratio | 1000:01:00 | |
| View Angel | Horizontal:89°/89° Vertical： 89°/89° | |
| Touch Technology | 10 Point Touch Projective Capacitor | |
| Touch Screen | Transmittance | ≥90% |
| Surface Hardness | 7H (Mohs) | |
| Touch Accuracy | ≤1.5mm | |
| Input method | Finger, Capacitance pen(Standard),Latex gloves touch (pre commissioning required) | |
| Touch interface | USB 2.0 | |
| Input Signal | VGA | Analog RGB（0.7Vp-p，75Ω），Separation synchronization（TTL）640x480/60/72/75Hz,720x400/70Hz,800x600/60/72/75Hz, |
| 1024x768/60/70/75Hz,1280X1024/60/75Hz | ||
| Note: non - VESA mode does not support | ||
| DP | DP1.2 (Single) 300M bandwidth, support HDCP1.2 (Optional) | |
| HDMI | HDMI 1.4, Support 1080P (Optional) | |
| Output Signal | Signal | R、G、B 8bit LVDS |
| Color | 24bit | |
| Audio | Speaker | 2*2W |
| Tightness | IP65 (Only Panel Frame)Touch screen and frame sealing | |
| VESA Mount | 75*75mm / 100*100mm (Optional) | |
| Dimensions | 527 x323. 6 x45. 4mm | |
| Color | White or Black (Optional) | |
| Ball drop test | 1KG steel ball falls from 1.2m without breaking | |
Monitor Medical
Medical Lcd Monitor
Mechanical Drawing
Medical Display Monitor
Medical Monitors
