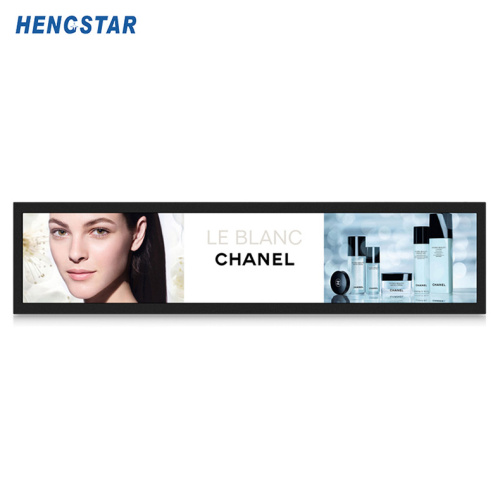

Long Stretch Commercial Advertising Digital Display
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 -15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Productivity: | 500 |
| Supply Ability: | 10000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE,ROHS, FCC |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Hengstar designed item Industrial Stretched Bar series LCD Display customized for different display resolutions, it is especially for industrial application, provide high quality image, the structure solid, rugged 15mm Aluminum front frame,3mm Aluminum chassis, strengthen the organic board protection, can be easily mounted touch screen, tempered glass display surface box, avoid dust, waterproof, avoid vibration. Special IPS bar screen, special-shaped IPS bar screen, car bar screen, bus subway station screen, bus guide screen, elevator multimedia bar screen, intelligent traffic screen, bar splicing screen, seamless IPS splicing screen, bar screen Advertising machine, touch integrated advertising machine, etc. Digital Signage Monitor, Outdoor Digital Signage, Stretched Display Digital Display Board,Digital Advertising Screen,Digital Signage Display,Stretched Display,Digital Display Board,Digital Advertising Screen,Digital Signage Display,Stretched Display
Long Stretch Commercial Advertising Digital Display
Key Feature:
◆Powder coated 15mm Aluminum front bezel, 3mm Aluminum Chassis or powder coated back cover. customized design available
Product Specification
| Size | 17.7" | |
| Panel | Aspect Ratio | 16:10 |
| spec | Pixel Pitch | 0.1596(H)mm x 0.4788(V)mm |
| Resolution | 1920 x 290(FHD) | |
| View angle | L / R: 89/89 , U / D:89/89 | |
| Luminance | 350 nits | |
| Contrast ratio | 1000:1(MIN.) | |
| Response time | TR6ms TF6ms | |
| Colors | 16.7M colors | |
| Video format | Support PAL/NTSC/ASCEM etc. | |
| Port | HDMI,VGA,DVI,USB | |
| Horizontal Frequency | 67.5KHZ | |
| Vertical Frequency | 60HZ | |
| Display SYSTEM | Main Chip (M-star593 ) | 300MHz Frequency |
| 10ns | ||
| 48% to 52% | ||
| 2.5W low TDP | ||
| Memory | 256MB | |
| Signal I/O | 1 *HDMI，1*DVI-I , 1 *VGA，1*USB | |
| Audio | 1* Audio Output(Optional) | |
| Power requirement | +24V +12V,+5V,+5V VSB, PS-ON | |
| Rear Panel I/O | 1*VGA Waterproof Connector | |
| 1*DVI-I Waterproof Connector | ||
| 1*HDMI NHDMI-WConnector-19Pin | ||
| 1*USB NA USB-W Connector-4Pin | ||
| Video SYSTEM | System Supported | PAL/SECAM/NTSC |
| Signal system | B/G,D/K,I,L/L,M/N | |
| Stereo | SRS TruSurround XT | |
| Power: 10W*2 (Optional) | ||
| QUALITY APPROVAL | Fire-resistance | UL-94HB |
| Water-resistance | NeMa4 | |
| Chemical-resistance | Active area of Touch is resistant for acetone(Optional), toluene, butanone, acetylacetone, methanol, acetic acid, gas, coal oil, and Vinegar. | |
| Certificate | RoHS 、FCC（Part 15）、CE（EN55022 and EN55024）Optional | |
| Support MIL-STD-810G ( check below for Detail) |
Good quality
The Stretched design had made the Bar-Type display series highly adaptable to various space constrains while catering for the need of flexibility, mobility, and fast to deploy.
Whether it be the storefonts, Public transportations, trade shows, Airports, Gaming machines, we are dedicated to deliver leading-edge digital experiences that impacts wide audiences and industries.
We provide vandal-proof protective glass or touch-screen for covering the front screen. Also we have various boards for different signal input solutions, and 12V/24V DC power input for different application requirements.
