CCTV RG 6U Coaxial Cable

Siamese Cable
1) BC or CCS conductor
2) Solid PE or Foam PE insulation,95% coverage

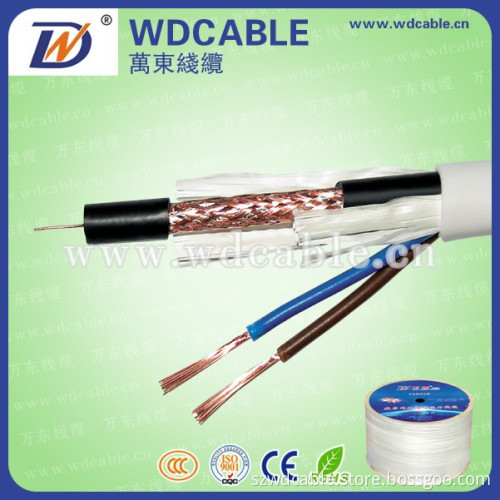

3) Stranded or solid DC power siamese cable,RG59 with power cable,RG59 Siamese cable,Siamese cable, RG59 with DC   Specifications:     BC: Bare Copper        TC: Tinned Copper         CCS: Copper Clad Steel     CCA: Copper Clad Aluminium       C:Cores  1) RG59+2C     RG59:0.81mm CCS/BC Conductor +3.65mm Solid/Foam PE+BC/TC Braiding +6.1mm PVC Jacket    2C/18AWG power cable:2C*42*0.174mm BC Conductor + 2.17mm PVC Insulation + 0.63mm PVC    Jacket  2) Customers'  specifications are wellcomed.     Note:    1) Center conductor: TC , BC  and CCS available, CCA;    2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-                          foil and Messenger are available;    3) Braiding wire: AL, BC and TC available;    4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;    5) Braiding net: 32, 48, 64, 72, 80, 96, 120,128, 144 and more available;    6) Braiding coverage: Between 30- 97% available;    7) PVC jacket of Flame retardant , UV, or UL available.                Application:   For audio and power transmission   Power Cable:   1) VDE/KEMA Flexible Cord   2) Light Duty PVC Jacket Flexible Cord   3) Ordinary Duty PVC Jacket Flexible Cord   4) Wire For Internal Wiring Of Equipment
