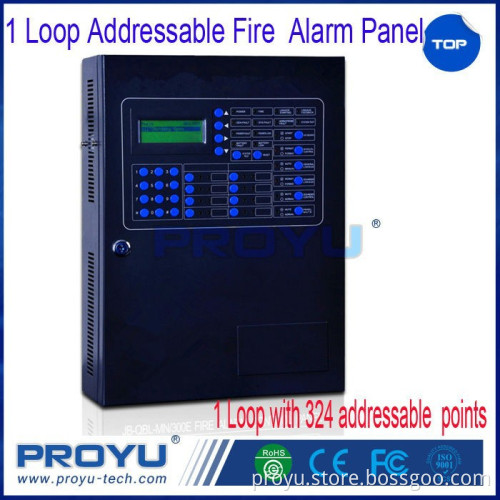

1Loop Addressable Fire Alarm Control Panel Systems For Factory

         1Loop Addressable Fire Alarm Control Panel Systems For Factory     CFT-MN/300/100 is a new type of analog addressable fire alarm control panel which has 100 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006)   Technical Specification: System capacity: 324 points (non-polarity, two buses, fully mixed coding) AC input voltage: AC 220V±20% 50Hz AC input power: 120W DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series The 24V DC power has a long-term constant output current of 6A. The 5V DC power has a long-term constant output current of 4A. Circuit bus: two-wire system; total length: ≤1500m Voltage UL of the circuit bus: +20V≤UL≤+26V(when the DC power is operating) +24V≤UL≤+26V(when the AC power is operating) System working conditions 1.Temperature: -10°C~+50°C 2.Humidity: ≤95% 3.Power supply: AC 220V 50HZ          DC 24V 6A 4.Output contact capacity: AC 220V 1A   DC 27.6V 3A   If you want to know more about us, welcome to visit our website: www.smart-home-security.cn
