Conventional Manual Call Point Fire Alarm Button

Get Latest Price

Delivery Time:: 1 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

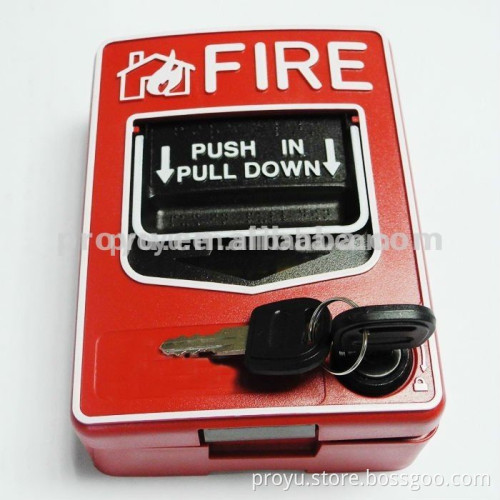

Conventional Manual Call Point Fire Alarm Button PY-SG116 designed for conventional fire alarm system for reporting fire or emergency condition by pull down the plate. The manual call point can be reset by a special key without breaking the glass.

Features: Compatible with all the conventional fire alarm control panel
Can be reset by key without use a new glass
470 Ohm resistance
Easy surface mounting Base included Technical Specification: Latching Alarm: Reset by momentary power interruption
System Voltage (nominal): 24 VDC (9V~ 28VDC)
Standby Current: 60 μA @ 24VDC
Alarm Current: 10~30 mA @ 24VDC
Operating Temperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Dimension: 140mmX105mm
Height: 45 mm
Weight: 220 g If you want to know more about us, welcome to visit our website: www.smart-home-security.cn Wiring diagram and products photo as below:
