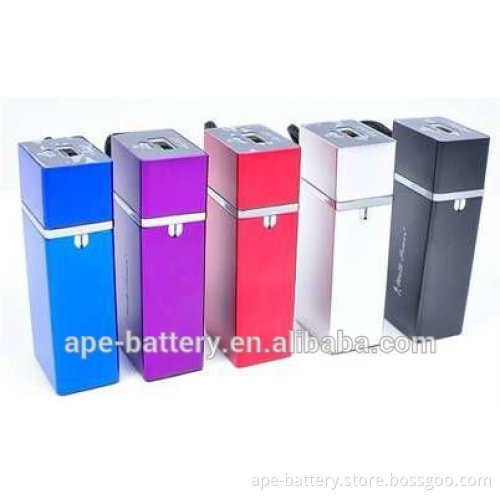

MP2500S for iPhone iPad external battery power solar

Specifications 1.Capacity:2500mAh

2. Three Output Ports: 5V/1.8A

3.With Apple"Made for iPhone"certification

4.With CE/ROHS certification

    Specification Weight:81g  Dimension:79mm(L)*32mm(W)*22.5mm(H)  Cell style:Li-polymer  Capacity:2500mAh USB OUT port’s voltage/current: 5.2V/1A~1.8A( maximum) Apple 30 pin Connector’s voltage/current: 5.2V/1A; Male Micro USB OUT Connector ’s voltage/current: 5.2V/1A~1.8A (maximum); Micro USB Charging in port’s voltage/current:5V/0.3~0.9A Charging time:3h~ 6h Battery power:9.3Wh Illustration description    1. Capacity Display Touched key:      The Capacity Indicated LED will be display capacity state while contact the Capacity Display      Touched Key by your finger. 2. Capacity Indicated LED:There are three different colors (blue & pink & orange) to indicate the      capacity status.

Turn light	Capacity of charging	Capacity of discharging
Orange color	0%~30%	10%~ 0%
Pink color	30%~80%	70%~10%
Blue color	80% ~100%	100%~70%

          3. Micro USB Charging in port:      Charge for MP2500S by attached cable plug in this Port; the charging voltage /current:5V/0.3 ~0.9A.      Smart charging input current varies from 0.3A to 0.9A . It will depend on the charger’s output driving      current capability to modify it . The charged timing will be shortened if charger’s output current as      larger as well . 4. Three Output Ports: The total output current of 3 output ports can’t be over 1.8A while application       which more than one output.      1) Apple 30 pin Connector:           The Apple 30 pin Connector can directly plug in iPad/iPhone/iPod without charging cable . It is           setting fast charging for iPad /iPhone / iPod, the iPad 2 can be charged into 15% fully capacity           or iPhone 4S can be charged into 70% fully capacity  within 1hour;       2) USB OUT port:            The USB OUT port is setting fast charging for Samsung Galaxy ..Tablet PC , Motorola , Sony ,            Nokia , HTC , Black Berry ..mobile phone by original charging cable or attached USB to Micro           USB output cable ; it also can slow charging(500mA) for iPhone / iPod by Apple 30 pin charging           cable . But iPad can’t be charged by this port.        3) Male Micro USB OUT Connector:             The Male Micro USB OUT Connector can conveniently plug in Kindle Fire , or Smart phone              (Motorola, Sony , Nokia, HTC,Black Berry.. mobile phone) directly for fast charging . 5. Each of the three output ports of MP2500S will auto turn ON while the Apple30 pin Connector or Male      Micro USB OUT Connector plug in loading device directly or the USB OUT port connected with loading      device by the charging cable. Its power will turn OFF automatically after 30 sec while the Apple 30 pin      Connector or Male Micro USB OUT Connector unplug from the loading device or the USB OUT port      disconnected with loading device by unplug charging cable , which can save the power when it idle. How to use: 1.Charging for MP2500S:       2.Charging for your device by MP2500S:      a. Charging for iPad/iPhone/iPod by Apple 30 pin Connector:                             b. Charging for Samsung Galaxy…Tablet PC from USB OUT port by attached USB to Micro                USB output cable & Samsung Galaxy tip                       c.Charging for Kindle Fire ..Tablet PC or Smart phone (Motorola,Sony , Nokia, HTC,             Black Berry …mobile phone) by Male Micro USB OUT Connector:            Warranty   Your MP2500S is guaranteed against original defects in materials, manufacture and workmanship    for one year from the date of purchase.
