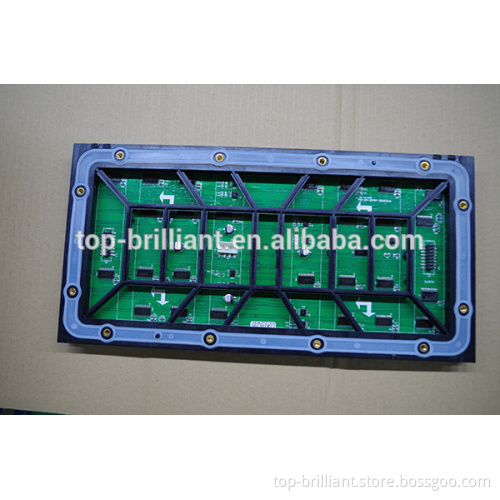

Wide viewing outdoor full color smd led module P10

Module:P10

LED Type

SMD3535

Pixel Pitch

10mm

Refresh frequency

1,500Hz

Module Size

320x160mm

View Angle

110/75

Module resolution

32x16pixel

Working Environment

Temp:-20°C~60°C, Humidity:10%~90%

Dot density

10,000pixel/sq. m

Working Voltage

AC:100V~120V AC:220~240V

Pixel configuration

SMD

Lifetime

100,000Hours

The best view distance

10-100M

Gray Scale

14bit/color

Cabinet dimension

960mmx960mm(Optional)

Color Display

1.07Billion

Cabinet resolution

96X96

Brightness

≥8000nit

Cabinet weight

58KG/sq. m

MITBF

0.00001

Drive mode

Constant current,1/4 Scan

IP

IP65

Max Power Consumption

600W/sq. m

Warranty

2 year

LED Parameter

R:d(625-630nm) R:IV(400-450mcd)

G:d(522.5-525nm) G:IV(1800-2200mcd)

B:d(467.5-470nm) B:IV(350-400mcd)

Image adjustment

Brightness, contrast, tone, color range etc

Brightness uniformity

Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)

Effective control distance

Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km

Color Temperature/contrast

Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable

Input signal

RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION

Control system

Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional
