Hollybol T-50 Price Checker

Specifications Price Checker

1.Wireless: WiFi 802.11 b/g/n with WPA encryption

2.Remote Management.

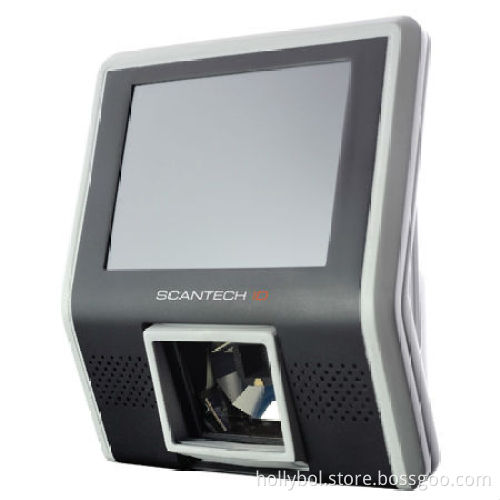

Price Checker   T-50 Self-service SCAN KIOSK with touch screen and media display function, designed to help retailer increase their business, reduce the operation cost and improve customer shopping experience. SK50 provide customers self-service applications, such as price check, sample music listening and watch the promotion video, with user friendly interface and rotatable scan window provides easy to operate and help customer to make purchase decision more easily and faster. SK 50 Expandable ability can easily build on by adding third-party USB/RS-232/GPIO peripherals, including printers, keyboards, Entry/Exit-Gate control function, optional RFID reader or magnetic stripe readers feature to support gift card balance, check membership card points and use personal discount coupons.SK50 allows shoppers to retrieve the required information without seeking the assistance of staff to make more informed purchase decisions. Powerful management tool built in embedded web server for simple access , remotely configure, diagnose, monitor and troubleshoot device, SK50 also provides developer SDK Software Suite, supports with example source code. SK50 will continuously help retailer with advance technology and stay ahead of the retail industry .

General
	SK50 Touch Screen scan Kiosk
	Multimedia support with High quality speakers
	Compact dimension for easy to deploy virtually anywhere in the store
	Easy to deploy and map out digital promotion image/video media
	Rotatable scanner window for installation.
	Comprehensive networking options: IEEE 802.11 B/G/N 2.4GHz
	Browser display technology for user friendly access to remotely configure, diagnose, monitor and troubleshoot devices
	Power Over Ethernet and Entry/Exit-Gate control function support (Optional)



Specifications
System Architecture
Processer	Super RISC Processor 400MHz
Operating Platform	Linux 2.6 Kernel or WinCE 6.0
Memory Flash	256MB expandable with USB flash drive and SD card
Memory RAM	128MB
Power supply voltage	DC 12V± 10% / 1.5A
Dimensions (WxHxL)	193 x 176 x 85mm
Weight	900g
Output Media
Display Size	5.7” diagonal
Brightness	400 nits
Resolution	640 x 480 pixels (65,535 colours)
Touch Screen	Resistive type
Graphics Supported	PNG, JPEG, GIF, BMP
Audio Supported	WAV, WMA, MP3
Video Supported	MPEG-4, H.264
Audio Ports	High Definition Stereo (16-bit PCM 44.1 KHz)
Speakers	High Quality loudspeakers for superior audio performance
Headphone	3.5 mm standard jack
Data Ports
SD Card Slot	1
USB 2.0	2 (back compartment) & 2 (side compartment)
LAN port 10/100 Mb	1
RS232	1 (+5V DC Power)
Power Over Ethernet Module	IEEE 802.3af Optional
Entry/Exit Gate control function	Optional (2-pin conn)
Network Interface
Wired LAN	Ethernet: 100MB Base-TX/10MB Base-T (802.3)standard on board,Two network LED indicators in the LAN connector
Wireless LAN	802.11 B/G/N 2.4 GHz(Optional)
Encryption protocols	WPA, PSK and WPA Enterprise security
Data Inputs
Scanner possibilities	1D Omni Directional Laser Scanner / 2D Imager Selectable
Symbologies Supported	Omni Directional Laser Scanner (1D) or 2D Imager (1D and 2D)
Scanner adjustable	The Scanner can be adjusted over an angle of 42°and locked with step of 6°
Software and Applications
Application	Price Check Application, Built-in web configuration, management and remote package upgrade
Color available	Gray / Red
Environmental
Operating temperature	0° ~ 40°C (32° ~ 104°F)
Storage temperature	-20° ~ 60°C (-4° ~ 140°F)
Humidity	5% ~ 95% RH (non-condensing)
