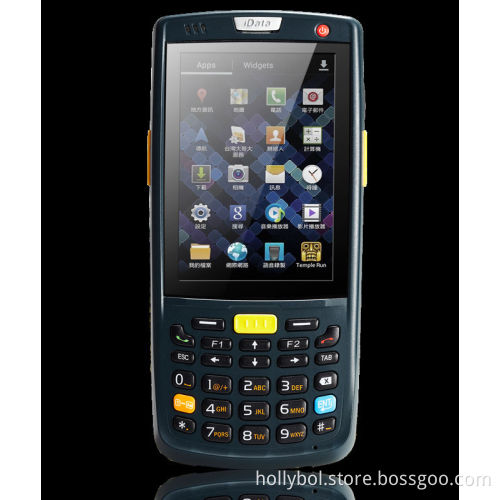

Handheld mobile computer/barcode scanner PDA
- Delivery Time:
- 3 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Guangdong, China (Mainland) |
|---|
Product Description
Product Description
barcode scanner PDA
| System Configuration | |
| CPU | 416 MHz high-performance ARM processor |
| Operating System | iData OS (Special Real Time OS) |
| Memory | 64 MB RAM/128 MB Flash (Max.: 128 MB RAM/256 MB Flash) |
| Expansion Slot | Mini SD card, up to 32 GB, Micro SD slot |
| Display | 3.5-inch HVGA (320x480), TFT high brightness, LED backlight |
| Display Material | Toughened glass |
| Touch Panel | Resistive touch panel |
| Camera | 2 Mega pixel, autofocus lens, LED flash |
| Exit Window | Corning Gorilla glass |
| Keypad | 30-key durable industrial keypad with interior transmission light |
| Battery | 3.7 V 4000 mAH rechargeable lithium polymer battery (6000 mAH battery optional) |
| Battery Life | 24 hours (full-load) |
| Audio | Built-in microphone |
| Notification | Vibrator alerts/LED/Audio notification |
| Vibration Motor | Built-in programmable vibration motor |
| > Operating Environment | |
| Development Tools | ADS (for C language); Eclipse (for Java language) |
| Programming Language | C,Java |
| Management Tools | iData Service |
| Operating Temp. | -10°C ~ 50°C |
| Storage Temp. | -20°C ~ 60°C |
| Relative Humidity | 0 ~ 95% (non-condensing) |
| Drop Specification | 1.5-meter drops to concrete ground (10 drops each side) |
| Tumble Specification | 500 0.5-m tumbles (1000 hits) |
| Sealing | IP65 |
| Electrostatic Discharge | Conforms to ±15 kV air discharge, ± 8 kV direct discharge |
| > Structural Parameters | |
| Dimensions (LxWxD) | 152 mm x 68 mm x 24 mm |
| Weight | 250g (standard battery included) |
| > Communication Transmission | |
| Wireless Voice Communication | 900/1800MHz |
| Wireless WAN | GPRS/EDGE |
| Wireless LAN | Wi-Fi 802.11b/g |
| Bluetooth | Bluetooth 2.0+EDR |
| GPS | High-performance GPS navigation chip |
| > Input/Output Ports | |
| USB Port | 1 ( Micro USB port) |
| Charger Port | 1 (DC port) |
| > 1D Laser Scanner | |
| Optical Resolution | ≥4 mil |
| Scan Depth of Field | 3.81 cm - 60.98 cm |
| Scan Angle | 47°± 3°(Standard) |
| Scan Speed | 102 ±12 scans/sec. (Bidirectional) |
| > 1D Linear Imager | |
| Reading Mode | CCD |
| Reading Accuracy | ≥4 mil |
| Decoding Speed | 300 times/sec. (Max.) |
> Infrared Communication Module | |
Built-in Infrared Communication Module | Structure with two emitting tubes, meter reading distance of up to 5 meters, fully supporting DL/T645 protocol and communication protocols of worldwide mainstream meter manufacturers |
Interface | Initial rate: 1200 bps, supported rates: 1200, 2400, 4800, and 9600 bps |
> RFID | |
Frequency | 13.56 MHz |
Reading Distance | Within 50 mm |
Protocol | ISO14443A/14443B/15693 |
> Accessories | |
Standard | Battery, power adapter, USB cable, hand strap |
Optional | 1-slot charging &communication stand, 4-slot battery charger |
| High running speed> Adopting the iData operating system (OS) developed by Wuxi iData Technology Company Ltd. and supporting C-language and Java-language development, the iData 70 offers a higher running speed and smoother user experience. |
| Low power consumption> With the design of one chip integrated circuit, the iData 70 offers ultralow power consumption and industry-leading battery life, making it the optimal choice for field operation, equipment inspection, and outdoor mobile operation; > A standard capacity (4000 mAH) battery, supporting continuous working of the iData 70 for 24 hours at full load; > A high capacity (6000 mAH) battery, supporting continuous working of the iData 70 for 36 hours at full load. |
| Powerful data collection> Advanced scanning engine, reading 1D barcodes normally printed on traditional media, stained, or covered with plastic film; > Built-in RFID read/write modules, quickly and accurately reading RFID tags in batches; > Built-in infrared communication module, fully supporting the DL/T645 protocol and infrared communication protocols of worldwide mainstream meter manufacturers. The structure with two emitting tubes supports a meter reading distance of 5 meters and easily realizes collection of intelligent meter readings. |
| Multiple wireless communication modes> Supporting multiple wireless communication modes such as GSM, GPRS, and EDGE in a wide area network (WAN); > Supporting Wi-Fi transmission in a local area network (LAN); > Supporting Bluetooth 2.0 close-range data transmission; > Integrating a high-performance GPS navigation chip, providing more accurate positioning. |
| Rugged and reliable mobile computer> Meeting IP65 sealing standard for superior dustproof and waterproof performance; > Meeting the 1.5-meter drop specification (10 drops) and the 0.5-meter tumble specification (500 tumbles) ; > Shell molded at one step using PC engineering plastics of General Electric Company; > Keys designed with the IMD film printing technology for scratch-resistance and a longer service life. |
