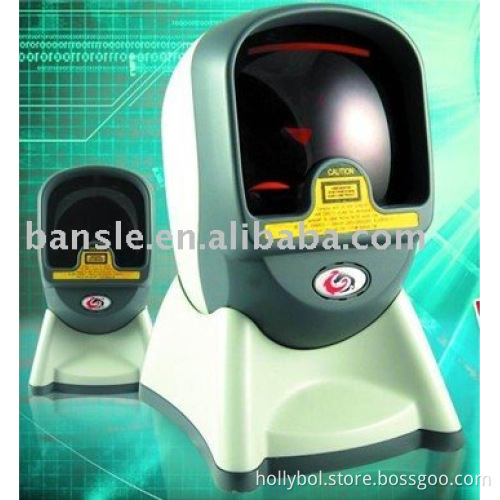

Omni-directional Laser Barcode Scanner XL2020
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|
*20 laser scan lines make the scan rate up to 1500scan/sAnd 75 scan/s
*omnidirectional and single-line scan barcode scanner
*20 laser scan lines make the scan rate up to 1500scan/sAnd 75 scan/s Product Features: *Support both omnidirectional and single-line scan *20 laser scan lines make the scan rate up to 1500scan/sAnd 75 scan/s on single-line mode *Self-developed decoder chip and high perfomance hardware decode Technology *Suit for kenboard ,RS-232,USB,interface port * suiting with each kind of charge machine * Full indepentent intellectual property rights ( having been award with multiple national patents) Technical Specifications:
Performance paramenter | |
Light source | 650nm Visible laser diode |
Scan Pattren | 20lines omnidirectional:5 fieles of parrallel lines |
Scan Rate | 1500 scans per second(omnidirectional),75scans per second (single-line) |
Print contrast | 30%UPC/EAN 100% |
Minumum resolution | 5mil@pcs90% |
Scan depth of field | 0-200mm(0.33mm.PCS 90%) |
Support interface | RS232，PS2 keyboard，USB and so on。 |
Indicators(LED) | Two color LED (Blue&Red) |
Beeper operation | Programmable tone &volume |
Physics Parameter | |
Size | L*W*H:105mm*100mm*156mm |
weight | 300g |
Material | ABS+PC |
Cable standard | 2.0m |
Electricity parameter | |
Voltage | 5V |
power | 1.0watts |
Static current | 200ma |
Laser safety | Comply with national Laser II safety standard |
EMC | CE & FCC DOC compliance |
Environment Parameter | |
Working temperature | 0-45 |
Storage temperature | -20-60 |
Humidity | Relative humidity 5%-95%（Non-condensing） |
Light levels | Max.5,000 Lux(Fluorescence) |
Shock | Desigend to withstand 1.5m drops |
Decod capacity | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codaber，Industoal 2 of 5，Interleave 2 of 5，Matrix 2 of 5，MSI，and so on . |
