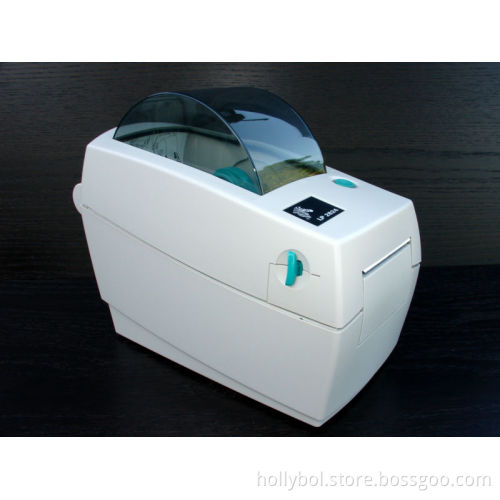

Zebra LP 2824Plus barcode printer/desktop printer

Specifications LP 2824Plus

Print method: Direct thermal (LP)

Odometer for printer length tracking

Unicode compliant for multi-language

2824Plus   Standard Features Print method: Direct thermal (LP) Odometer for printer length tracking Unicode compliant for multi-language printing     More Standard Features Reset feature button Construction: ABS double-walled casing OpenACCESS design for easy media loading 32 bit RISC processor for high throughput Auto calibration of media Head-up sensor Zebra Setup Utilities for printer setup and configuration Standard tear-off mode Certified Microsoft Windows drivers Printer Specifications Resolution: 203 dpi (8 dots/mm)
Memory 8 MB SDRAM, 4 MB Flash (standard) 64 MB Flash with real-time clock for a total of 68 MB (option) Print width: 2.2" (56mm)
Print length: 39" (991mm)
Print speed: 4" (102mm)/sec
Media sensors: Reflective, Transmissive Media Characteristics Maximum label and liner width: 2.36" (60mm), 1.44" (37mm) with Media Adapter Guide
Minimum label and liner width: 1.00" (25.4mm), 0.585" (15mm) with Media Adapter Guide
Maximum label and liner length: 39" (991mm)
Maximum label and liner length (optional): 39" (991mm)
Maximum roll diameter: 5" (127mm)
Core diameter: 1.0" (25.4mm) and 1.5" (38mm)
Media thickness: 0.003" (0.08mm) to 0.007" (0.18mm)
Media types: (black-mark optional), black bar, black mark, continuous, continuous receipt, die-cut, gap, fanfold, linerless, notch, notch sensing, notched, optional linerless platen, perforated, receipt, roll-fed, tag, tag stock Operating Characteristics Operating temperature DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 10-90% non-condensing R.H.
Storage humidity: 5-95% non-condensing R.H.
Electrical: Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz
Agency approvals FCC VCCI C-TICK UL NOM CE IRAM AAMI Physical Characteristics Width: 4.4" (111mm)
Height: 6.8" (171 mm)
Depth: 8.5" (216 mm)
Weight: 2.7 lbs (1.2 kg)
Shipping weight: 5.3 lbs (2.4 kg)
Orientation Center Related Products Options 64 MB Flash memory with real-time clock for a total of 68 MB Internal 10/100 Ethernet connectivity combined with USB Cutter for continuous paper, label liner (with no adhesives), and tag stock (no more than 0.007"/0.18mm thick) Label dispenser for label peel and present with label taken sensor Asian language support ZBI 2.0 - field upgradeable Communication and Interface Capabilities USB and Serial RS-232 with auto-sensing serial port
Centronics Parallel (36 Pin)
10/100 internal Ethernet with USB (option) Programming Languages Core programming languages: ZPL, ZPL II, EPL, EPL-Page Mode, EPL2, Line Mode Bar Codes/Symbologies Linear Codabar
Code 11
Code 128
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Plessey
Postnet
RSS-14 (limited, truncated, stacked)
Standard 2-of-5
UPC-A
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
Code 128 with subsets A/B/C
UCC/EAN-128
UPC-A with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-8 and EAN-13
Japanese Postnet
MSI-3
German Post Code
2-dimensionalCodablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts One resident scaleable ZPL font 5 resident expandable EPL2 fonts
