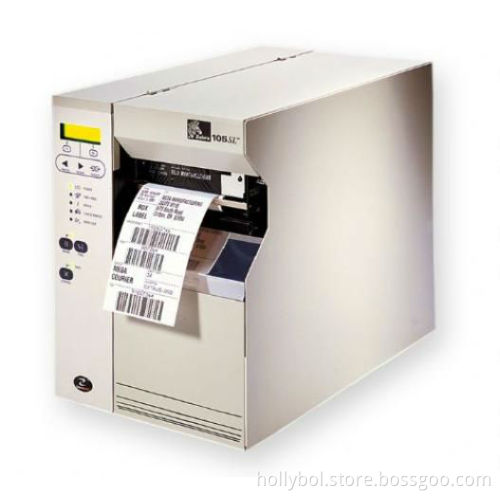

Zebra 105SL barcode printer/105SL Industrial Printers

Specifications zebra105SL

Print methods: Thermal transfer or direct thermal

Construction: Reinforced metal exterior

Transmissive media senso

zebra 105SL   Standard Features Print methods: Thermal transfer or direct thermal Construction: Reinforced metal exterior and all-metal components - drives, gears, and spindles Transmissive media sensor       More Standard Features Fast 32-bit processing Selectable print speeds up to 8" (203 mm)/second Zebra Printer Management Standard two-line, 16-character LCD control panel Zebra's E3 Printhead Energy Control Internal Real-Time Clock Printer Specifications Resolution: 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory 6 MB SDRAM 4 MB Flash   Print width: 4.09" (104 mm)
Print length 200 dpi: 106" (2,692 mm) 300 dpi (optional): 65" (1,651 mm) Print speed: 203 dpi:
8" (203 mm)/sec
300 dpi:
8" (203 mm)/sec
Media sensors: Transmissive Media Characteristics Maximum label and liner width: .79" (20 mm) to 4.52" (115 mm)
Maximum label and liner length: 39" (991 mm)
Maximum roll diameter: 8" (203 mm) O.D.
Core diameter: 3" (76 mm) I.D. core
Media thickness: .003" (.076 mm) to .012" (.305 mm)
Media types: continuous, die-cut, fanfold, (black-mark optional) Ribbon Characteristics Outside diameter: 3.2" (81.3 mm)
Standard length: 984' (300 m) to 1,476' (450 m)
Ratio: 2:1 and 3:1 media roll to ribbon
Ribbon width .79" (20 mm) to 4.5" (114 mm) Ribbon is recommended to be at least as wide as media Ribbon setup: Ribbon wound ink side out
ID Core: 1.0" (25.4 mm) Operating Characteristics Operating temperature TT: Operating temperature: 40° F (5° C) to 104° F (40° C)
Thermal transfer DT: Operating temperature: 32° F (0° C) to 104° F (40° C)
Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
Operating humidity: 20-85% non-condensing R.H.
Storage humidity: 5-85% non-condensing R.H.
Electrical Universal power supply with factor correction 90-264 VAC 48-63 Hz Agency approvals UL 1950 CISPR 22 (Class B) CSA 950 IEC950 801-2, -3 and -4 standards Canadian Doc. (Class A) FCC (Class A) CE compliance Physical Characteristics Width: 11.2" (283 mm)
Height: 15.5" (394 mm)
Depth: 19.5" (495 mm)
Weight: 55 lbs (25 kg)
Shipping weight: 63 lbs (29 kg) Related Products Options 300 dpi printhead PCMCIA memory slot European and Asian font sets Media Rewind Spindle (Internal rewind) Peel and liner rewind (for print-and-apply) Full width cutter with orderable catch tray Fan Fold Bin Reflective media sensor Twinax and coax interfaces Factory Installed 64 MB (61 MB user available) Flash Memory Option RS-422/485 serial adapter interface ZebraNet Print Servers ZebraNet Wireless Plus Print Server Communication and Interface Capabilities Standard high speed RS-232C/422/485 serial interface Centronics IEEE 1284 bi-directional parallel Zebra Printer Management (requires optional ZebraNet print servers) ZebraNet Wireless Plus Print Server ZebraNet 10/100 Print Server Programming Languages Core programming languages: ZPL, ZPL II Bar Codes/Symbologies Linear Codabar
Code 11
Code 128 with subsets A/B/C and UCC case codes
Code 39
Code 93
EAN-13
EAN-8
Interleaved 2-of-5
Industrial 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
2-dimensional Codablock
Code 49
Data Matrix
MaxiCode
PDF417
QR Code
MicroPDF417
RSS / GS1 DataBar family (12 barcodes)
TLC 39
Aztec
Fonts and Graphics Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed) Sets: IBM Code Page 850 International character set Supports user-defined fonts and graphics - including custom logos ZPL II drawing commands - including boxes, circles, and diagonal lines
