J1900 x86 Qotom Desktop Computer Mini Itx Server Barebone Firewall mac pc 1080p 4 Ethernet Router Ubuntu mini pc 12v

Product Description

Item Name	Q190G4N
Dimension	Q190G4-S01:156*128*37mm(L*H*W) Support SSD only Q190G4-S02: 156*128*45mm (support HDD and SSD at the same time)
Power Consumption	10w
Onboard CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Memory	Support DDR3 1333/1600 MHz 1.35V
Hard Disk	mSATA SSD
Onboard VGA	intel HD Graphics
Onboard LAN	Intel WG82583-10/100/1000 Controller
gross Weight	2kg
WiFi	300MB Wifi with 2 Antennas
Audio Solution	Realtek ALC662 6-Channel HD Audio

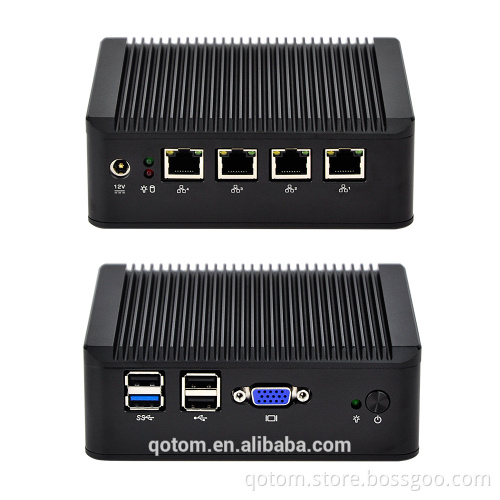

Front-Panel Connectors	• power on/off • Power LED • 3 x USB 2.0 Ports    1 x USB 3.0 Ports • 1 x VGA Port
Rear-Panel Connectors	• 1 × DV 12V input • Power LED,HDD LED • 4 x RJ-45 Ports • WIFI and Bluetooth (option only for USB singal)
Operating System	Windows 7 / Windows 8 / Windows 10 / Linux .etc Windows 7, 8 & Linux Compatible, suggest Linux for less than 16GB SSD, up to 32GB SSD suggest Win7

Attention Here are some configuration for your reference.
Memory: 2GB/4GB/8GB RAM
Hard disk: 8/16/32/64/128/512 GB SSD
WIFI and Bluetooth: 300M  wireless
You can change the configuration we provided according to your needs. pls contact Sunny Lau
Detailed Images We have two cases of this item,if you would like this one pls contact me.

Packing & Delivery You do not need to worry about the plug.There are kinds of choice,and will be arranged according to your country's standard of application.
Product Application
"6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong:  only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery.

Related Mini PC
What can this mini computer do?
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P video play and others


Q310G4(4LAN+2USB2.0+2USB3.0 + COM + HDMI )  Dual core  Celeron Processor 3215U
(2M Cache, 1.70 GHz) onboard
Q190G4N-07(4 LAN+ VGA+ 3USB2.0, USB3.0)
Quad core Celeron J1900 (2M Cache, to 2.42GHz)

Q190P(2 LAN + VGA + 4 COM + 1 USB 3.0 + 3 USB2.0) with Quad Celeron Processor J1900
(2M Cache, up to 2.42 GHz)
Q180P (with dual core Intel Celeron Processor J1800 onboard, 1M Cache, up to 2.58 GHz) Q310P(6 serial port +2 LAN +      4USB3.0 +2 HDMI port)
With CPU Celeron 3215U/ i7-4500U     /3205U/ 3805U Processor
(2M Cache, 1.70 GHz) motherboard
Q180S/Q190S( HDMI +  VGA +       COM + 2LAN + 4USB )
Q180S      with dual core Intel Celeron Processor J1800 onboard, 1M Cache Q190S Quad Celeron Processor J1900
(2M Cache, up to 2.42 GHz) I37C4(4USB2.0+ 4USB3.0 +HDMI +2LAN +VGA+ 4 COM)
with CPU Celeron 1037U (1.8GHz, 2M Cache ) Visit Our Factory In the early 2010, QOTOM Computer was founded in Shenzhen. It is a Mini PC manufacturing corporation. We provide OEM service and owns customers all over the world .After these years rapid growth, Qotom corporation has become a rapid growth corporation in the mini ITX field, and has contributed a lot to the leading and promotion of mini PC’s development with production and sales over 3 million pcs/year.Semi-Automatic machine makes the mass production possible. We nowadays have an extremely professional team. Service
All the mini pc and accessories have been tested before delivery.The goods will be sent to you about 3 days arrives at destination. The preloadded unactivated  Windows 7 for test which have no license. If you want to change the os,pls contact me in time.Email or message is all acceptable. Your immediate feedback will be highly appreciated. Thank you for your positive reply, we will try our best to meet your requirements. We are not responsible for your import fees (duty and tax, VAT and others), but we can  our best to help you avoid and solve
We are not responsible for the delays due to the Customs clearance in your country. One year warranty
FAQ Q: What's your MOQ?
A: MOQ: 1 piece. We can give you a discount for your bulk order.

Q: Can you provide OEM service?
A: Sure, you can choose RAM, storage, wifi and OS freely as you want, the unit price will be different depends on the configurations, please contact us to get the latest price!

Q: Can I print my logo on the mini computer?
A: Yes, we can print your logo on the mini computer by silkprint, it is for free but based on the quantity. We also customize your label.

Q: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
