2 Lan 4 COM ,Fanless Quad Core J1900 2.0 GHz 720P/1080P X86 2016 Industrial PC

Product Description

Model	Q190P
Size	135×128×45mm
Weight	820g
Color	Black -silver need booking
Onboard CPU	Intel Celeron Processor J1900(Quad-Core 2M Cache,2 GHz, up to 2.41 GHz)
Memory	DDR3 SO-DIMM Memory - 1 x Memory Slot，Supports up to 8GB Memory
Storage	- supports mSATA SSD and 2.5 HDD - Support SATA 3.0 6Gb/s
Onboard VGA	Intel HD Graphics
LAN	2* RJ-45 port - Realtek RTL8111E 10/100/1000 Controller
Wireless	Optional ( 802.11 b/g or 802.11 b/g/n)
Bluetooth	Optional
Audio	Realtek ALC662 HD Audio
Power Consumption	10W

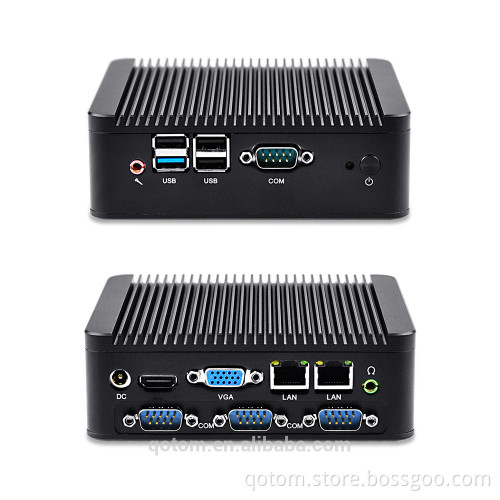

Front-Panel Connectors	• 1 × Power switch button ( Power LED ) • 1 × HDD LED • 1 × USB 3.0 port • 3 × USB2.0 ports • 1 × Microphone port • 1 × Serial port
Back-Panel Connectors	• 1 x DC 12V DC input • 1 x HDMI port • 1 x VGA port • 2 x RJ-45 ports • 1 x Speaker port • 3 × Serial ports
Operating System	Without the operating system by default - Support Windows 7 / Windows 8 /Linux etc.
Packing list	Q190P，Power adapter，VESA Mount Bracket ( 75mm x75mm )

Related Products Application Field 1,It can act as a host, applying to home, office, library, hospital, restaurant, bank and almost of where need a computer. 2,This Mini Pc can be configured as a firewall, LAN or WAN router, VPN appliance, DHCP Server, DNS Server, and IDS/IPS with optional packages to deliver a high performance, high throughput front-line security Our Company With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Contact Us Packing & Delivery Packing
What's in the Package box? 1* mini pc
1* the holder
2* antenna (if you order wifi)
1* package box
1*12V 3A Power adapter and power plug.
There are 5 kinds of plug: Chinese standard / European standard / British standard / Australian standard / American standard)

Delivery 1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms, contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by EMS.
PAYMENT 1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY 1.For all the mini pcs you bought from us, we provide a full one-year warranty.
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
FAQ Q1. What's your MOQ?
A:The MOQ will be 1 sets for each order.

Q2: What's the lead time?
A: It will be 1-2 days for samples and 2-12 days for bulk order, depends on your required.

Q3. Can I print my logo on the mini computer?
A:Yes, we can print your logo on the Qotom mini computers /package box by silk print , as you required. MOQ:50 pcs

Q4:Can your device work 24h*7 days? And what about the temperature range it can operate in?
A:Yes, our computers can work 24h* 7 days. The working temperature is -10°-55°.
Q4. Can you provide OEM/ODM service?
A:Sure, you can customized the package box, housing(outer shell), interface port, GPS module,3G/4G module and the function of motherboard as you want,the unit price will be different depends on the specification, please contact us Qotom group for more details !
Q5: Can I arrange the shipment by myself ? I have forwarder in China.
A: No problem, we can delivery in China for free. Please inform your forwarder that our products have lithium metal battery on motherboard, that is very important.
