3000W Pure Sine Wave Inverter
HYD >> Our advantage
1. work perfectly with enough materials
2. The multiple protection which can be safe used.
3.90% ultrahigh efficiency
4. imported intelligent fan, temperature control design.
5. jamming performance, refused snow and noise
6. The magnesium alloy shell, with light weight and fast heat dissipation.
7. chip technology, the volume is reduced 40-60%, 60-80% weight reduction, reduces the chance of cold dry

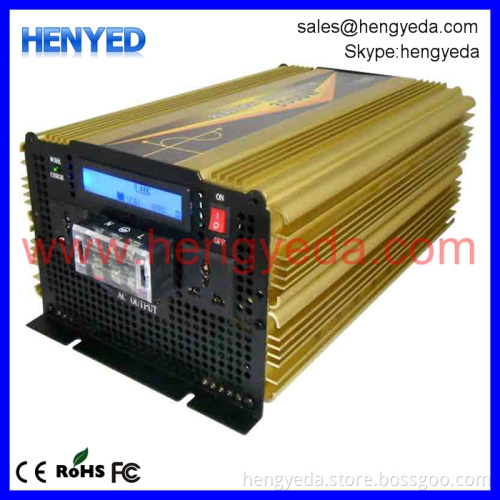

HYD >> Physical Picture
HYD >> Details
HYD >> description and Parameters (PURE SINE WAVE)
| Rated power | HYD-3000P+LED/LCD | ||
| Output continous power | 3000W | ||
| Output peark power | 6000W | ||
| Input | DC input voltage | 12V | 24v |
| DC working voltage | 11-14.5V | 21-29V | |
| DC input Low voltage protection | 10V±0.5V | 20V±0.5V | |
| DC input Over voltage protection | ≥14.5V | ≥29V | |
| Fuse | 400A*1 | 200A*1 | |
| Static current | ≤1A | ≤1A | |
| Output | Output wave form | Pure sine wave | |
| Output voltage | 110V±5% | 220V±5% | |
| Output frequency | 60Hz±5% | 50Hz±5% | |
| Reversing effiency | ≥85% | ||
| Overload protection | 2900w-3100w | ||
| Short circuit protection | Yes | ||
| Fan start temperature | ≥40±5℃ | ||
| Temperature protection | 70±5℃ | ||
| W | ≥5%(Linear load) | ||
| Gree LED indicator |
Lighting(working),Flash slowly(Lack voltage) , Flash fast (
Faul ccur and the unit is in protection situation). |
||
| LCD display |
1.Display battery input voltage 2.Display battery power 3. show Waveform 4. Display AC output voltage |
||
HYD >> Test Result
| Model | HYD-300P | HYD-600P | HYD-1000P | HYD-2000P | HYD-3000P |
| Refrigerator | X | OK | OK | OK | OK |
| Air conditioning | X | X | 1P | 1.5P | 2P |
| Washing machine | OK | OK | OK | OK | OK |
| Vacuum cleaner | OK | OK | OK | OK | OK |
| Mixer | OK | OK | OK | OK | OK |
| Fan | OK | OK | OK | OK | OK |
| Hair dryer drum | OK | OK | OK | OK | OK |
| Microwave | X | X | X | OK | OK |
| oven | X | X | X | OK | OK |
| Pump | X | <200W | <600W | <1200W | <2400 |
| Air Compressor | X | <200W | <600W | <1200W | <2400 |
| Drill | OK | OK | OK | OK | OK |
| Electric kettle | OK | OK | OK | OK | OK |
| lamp | OK | OK | OK | OK | OK |
| TV | OK | OK | OK | OK | OK |
| Speaker | OK | OK | OK | OK | OK |
HYD >> How to use?
HYD >> feedback from customers
HYD >> ABOUT US
1.We HYD is a professional Manufacture on power inverters and some consumer electronics since 1992 in shenzhen.The items cover Off-grid tie inverters.Solar controller.Battery Charger.Solar lights.and so on-
2. Factory picture
3.Production process
4.Certificate
5.One Year Warrenty time
