VHF Antenna Splitter
- Payment Type:
- T/T, Western Union, Paypal
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 300sets/month |
| Payment Type: | T/T,Western Union,Paypal |
| Transportation: | Ocean,Land,Air |
VHF Splitter
Specifications
high quality VHF splitter, 2 way VHF Splitter, VHF Splitter, 136-174MHz VHF Splitter, 2 way Splitter, power splitter, N-Female

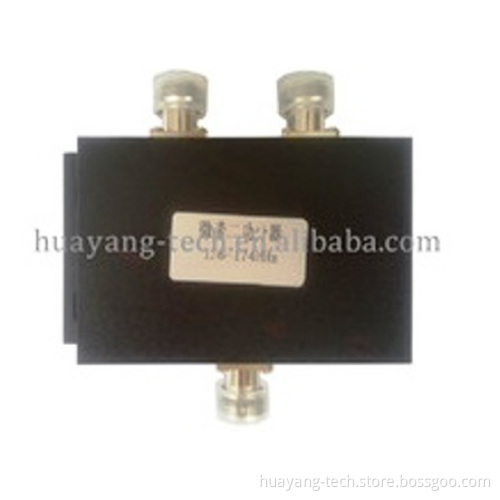

136-174MHz 2 way VHF Splitter
The VHF Splitter can be used to connect the AIS transponder together with VHF Radio to one VHF antenna
|
VHF Radio |
|
AIS transponder |
|
VHF antenna |
Specifications
|
Frequency Range |
136-174MHz |
|
Distribution ratio |
3dB |
|
Insertion Loss |
≤3.4dB |
|
Fluctuation band |
≤±0.2dB |
|
Isolation |
≥18dB |
|
VSWR |
≤1.3dB |
|
Amplitude Balance |
≤0.2dB |
|
Phase balance |
≤5° |
|
Impedance |
50Ω |
|
Connector Type |
N-Female |
|
Power Capacity |
100W |
|
Operating Temperature |
-25-+55℃ |
|
Size |
12.3*11.7*2.8cm |
|
Net weight |
0.34kg |
