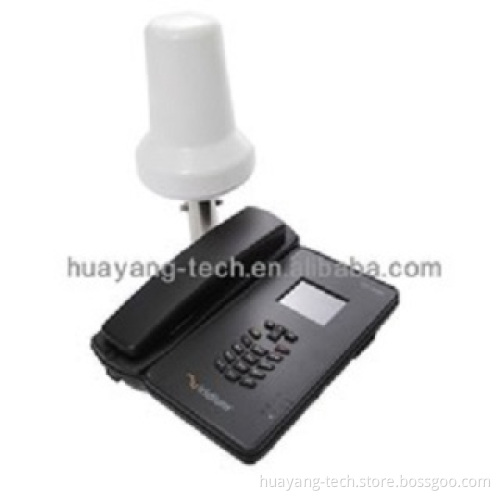

Iridium IST-8000 Voice and Data Satellite Communication Terminal

Iridium has 66 Low Earth Orbit satellites, meaning it can reach more places than other networks! It is the only truly global network ... covering everywhere (including the North and South Poles).

Main Function:

The iridium IST-8000 is designed to be operated with iridium satellite system service, support all iridium Voice, data, SMS and SBD service.

The IST-8000 is the ideal low cost satellite phone for various maritime, transport or fixed site applications.

Features

 Compact all-in-one design

 Easy installation and operate.

 High quality IP54 rated maritime enclosure

 In-built speakerphone

 In-built slimline active privacy handset, High stable and clear voice.

 Compressed Data: 10-12 kbps

 Voice/Data Modulation: 2.4 kbps

Technical Specifications

Main unit

1) Power input Voltage: 9-32V DC

2) Power consumption (AMPS)

3) Stand-by: 66mA/ 0.8W

4) Transmit: 300mA/ 3.5W

5) Antenna port: TNC-Female

6) Power port: 2 pin Aviation interface

7) Data Port: Micro USB

8) Dimension: 220x173x46mm

9) Weight: 657g

Antenna Specification

1. Frequency: 1610-1626.5MHz

2. Polarization: Right hand circular

3. VSWR: Less than 2:1

4. Working Temperature: -40c~ +70c

5. Storage Temperature:-55c ~ +85c

6. Humidity: 90%

7. Antenna dimension: 114x234mm

8. Weight: 0.41kg

9. Antenna gain: 4dB max

10. Connector type: N-K
