ODF

Generally, the ODF box is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.

Features

19 standard mounting, available for all kinds of rack and cabinet.

Metal, static electric plastic sprayed. Neat appearance, reasonable structure.

All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.

Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.

Suitable for both ribbon and bunch fiber cables.

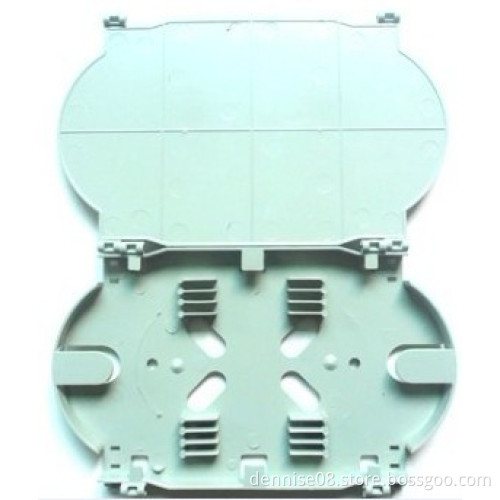

Each splice trays can be clamped with 12 FC, SC, ST, LC (Duplex) adapters/30°oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.

Products specification:

ODFSB12: Capacity: 12 fibers 1 Dimensions: 48*30*4.45cm

ODFSB24: Capacity: 24 fibers 2 Dimensions: 48*30*6.95cm

ODFSB48: Capacity: 48 fibers 4 Dimensions: 48*30*13.35cm

ODFSB72: Capacity: 72 fibers 6 Dimensions: 48*30*18.5cm

ODFSB96: Capacity: 96 fibers 8 Dimensions: 48*30*26.5cm

ODFSB144: capacity: 144 fibers 12 Dimensions: 48*30*31cm
