Input DC 9 - 36V Car LED Power Supply Output 40A , 200W Dri
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

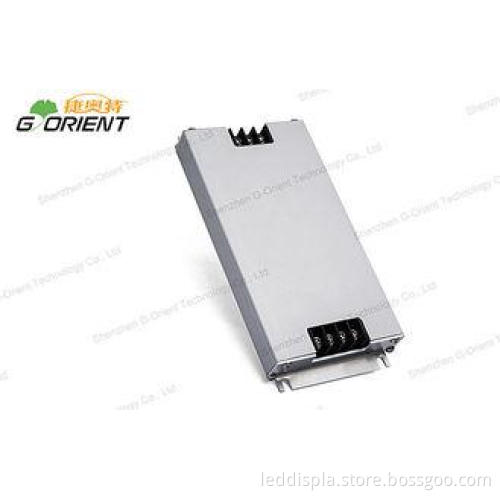

Input DC9-36V Car LED Power Supply Output DC5V 40A, 200W Driver for LED Display
Features:
* Input reverse connect protection
* High efficiency 94% & small size
* Low output ripple and noise
* Through the EMC certification
* Aluminum metal shell,natural cooling
* 2 years warranty
* To prevent car screen flower screen, the splash screen and two horizontal line design
Company Advantage:
1. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
2. Your inquiry related to our products or price will be replied in 24hrs
3. Distributorship are offered for your unique design and some our current models
4. OEM&ODM,any your customized lightings we can help you to design and put into product
5. Protection of your sales area,ideas of design and all your private information
Specifications:
|
Switching power supply |
NHD-200-5E |
|
|
OUTPUT |
DC Voltage |
5V |
|
Current Range |
0~40A |
|
|
Rated Current |
40A |
|
|
Rated Power |
200W |
|
|
Ripple & Noise(max.) |
<100mVp-p |
|
|
Voltage set point accuracy |
+/- 3.0%Vo max |
|
|
Over-current protection |
>120%io,hiccup |
|
|
Line Regulation |
0.2%Vo max |
|
|
Load Regulation |
0.2%Vo max |
|
|
Short-circuit protection |
Hiccup |
|
|
Hold up time |
>8mS |
|
|
Overshoot and undershoot |
< +/- 5.0% |
|
|
INPUT |
Voltage Range |
DC9-36V |
|
Frequency Range |
BW=20MHz |
|
|
Efficiency(Typ.) |
94% |
|
|
DC Current |
<25A |
|
|
Inrush Current(Typ.) |
100A at DC Cold start |
|
|
Leakage Current |
Input-Output< 0.2mA ; Input-PG:<0.3mA |
|
|
Environment |
MIBF |
>2 million hrs |
|
Temp.Coefficient |
< 0.02%/℃ |
|
|
Storage Temperature range |
-55 ~ +115℃ |
|
|
Operaing board Temperature range |
-25 ~ +65℃ |
|
|
Safety |
Safety standards |
CE |
|
Withstand Voltage |
DC40V |
|
|
Others |
Dimension |
168*80*18mm (L*W*H) |
|
Packing |
0.6kg; 20pcs/12Kgs |
|
|
Note |
|
|
|
|
||
Competitive Advantage:
* The two level output over voltage protection
* Output over-current,short-circuit,over-load,over-voltage protection
* Ultra-thin 18mm
* High efficiency up to 94%
* CE / ROHS / FCC approval* Low output ripple and noise
Applications:
This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
