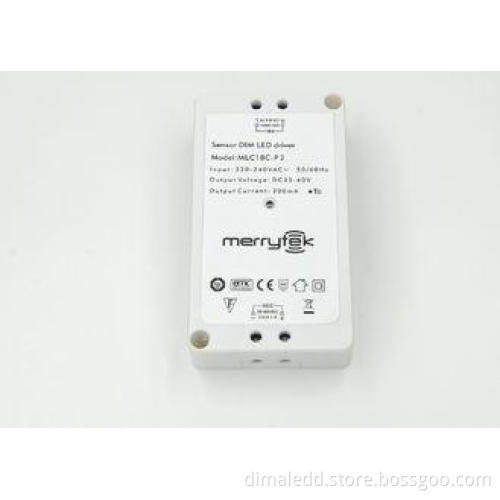

IP20 Isolated Installation Integrated Sensor LED Driver 18W
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
18W isolated installation integrated sensor led driver for panel lamps, 3 Step Dimming Function
Description:
1, 3 in 1 technology, integration of Dimmable led driver, Microwave motion sensor and daylight sensor
2. Available for both built-in installation mode and isolated installation mode
3,.Sensor part only 42x26mm,take up small area on led board when apply built-in installation mode
4, On-off function and 3-step dimming function (Corridor function) are optional
5, Compact size makes the drivers suitable to fix within most 300x300 led panels
6, Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7, Sensor DIM LED drivers, originally pioneered by Merrytek, are innovative products integrated with HF motion detector, daylight sensor and LED power supply.
8, The products supply a simple energy-saving solution for LED ceiling lights. As all control parts are integrated in a same housing, it is very easy to assemble and save labor cost.
Optional Function
Specifications
|
Operating voltage |
220~240Vac, 50/60Hz |
|
Output constant current |
300mA |
|
Output voltage |
35-60Vdc |
|
Efficiency: |
≥ 80% |
|
Power factor |
≥ 0.9 |
|
Transmitting power |
< 0.5mW |
|
Power consumption |
≤ 1W(standby) |
|
HF system |
5.8GHz± 75MHz, ISM wave band |
|
Detector zone |
12m x 6m |
|
Detection sensitivity |
10% / 50% / 75% / 100% |
|
Hold time |
10s / 90s / 3min / 10min |
|
Corridor function |
0s / 30s / 10min / Disable |
|
Daylight sensor |
5lux / 15lux / 50Llux / Disable |
|
Stand-by dimming level |
20%, can be customized |
|
Mounting height |
6m Max. |
|
Motion detection |
0.5-3m/s |
|
Detection angle |
150° (Wall installation) 360° (Ceiling installation) |
|
Operating temperature |
-20~50℃ |
|
IP rating |
IP20 |
|
Size |
Ф78x28.5mm |
Application:
Stairwell, Corridor, Balcony, Pathway, Washroom, Kitchen, Subway, Basement etc.
Competitive Advantage:
.
1, Patented product of Merrytek.
2, Integrated microwave motion sensor and LED driver in a same housing, save the material cost and installation cost.
3, Built in microwave motion sensor and daylight sensor, automatic switching and dimming based on ambient light level and motion.
4, Press-in type terminals (Input L, N, output LED+ LED-), easy assembling.
