Product Description

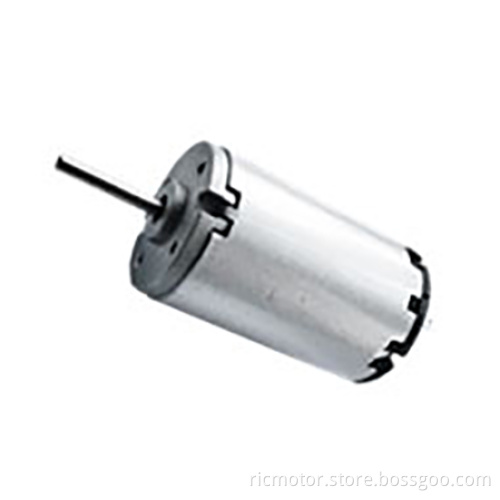

Diameter 31mm, body length:51mm

Model:RH-3151SD-2170
Operating voltage:6V-15V
Rated voltage:12V
No-load speed:3600rpm/min
No-load current:0.07A
At max Efficiency speed:3050rpm/min
At max efficiency current:0.28A
At max efficiency torque:100g.cm
Output:3.14W
Stall current:2.08A
Stall torque:647g.cm

Model:RH-3151SD-15132
Operating voltage:15V-28V
Rated voltage:24V
No-load speed:3800rpm/min
No-load current:0.45A</p>
At max Efficiency speed:3180rpm/min
At max efficiency current:0.22A
At max efficiency torque:110g.cm
Output:3.66W
Stall current:1.12A
Stall torque:674g.cm

Model:RH-3151SD-3025
Operating voltage:6V-15V
Rated voltage:12V
No-load speed:10690rpm/min
No-load current:0.34A
At max Efficiency speed:9133rpm/min
At max efficiency current:1.98A
At max efficiency torque:168g.cm
Output:15.77W
Stall current:11.59A
Stall torque:1153g.cm

Products can be customized according to customers requirements.
