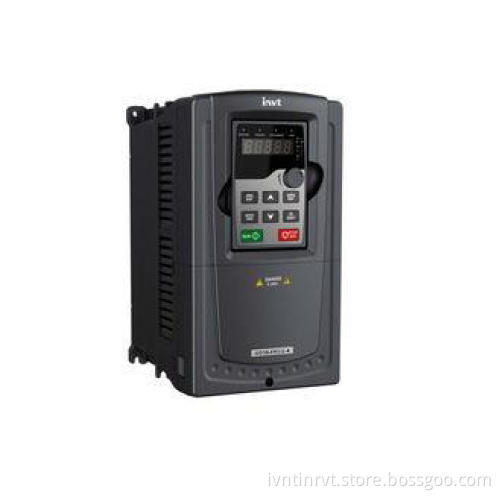

400Hz 3 Phase Inverter 1.5kw / 2.2kw Goodrive35 series Closed-loop Vector Control

Description
Goodrive35 inverter special spindle-positioning frequency inverter developed from the Gooddrive300, part of the new generation, is a more accurate and powerful closed-loop vector frequency inverter.

Specifications
Selection Guide

Model	Output Power(kW)	Input Current(A)	Output Current(A)	Carrier Frequency(kHz)
GD35-1R5G-4	1.5	5.0	3.7	2~15(8)
GD35-2R2G-4	2.2	5.8	5.0	2~15(8)
GD35-004G-4	4	13.5	9.5	2~15(8)
GD35-5R5G-4	5.5	19.5	14	2~15(8)
GD35-7R5G-4	7.5	25	18.5	2~15(8)
GD35-011G-4	11	32	25	2~15(8)
GD35-015G-4	15	40	32	2~8(4)
Big Power Section	18.5~75	Determined by rated power	Determined by rated power	2~8(4)

Features:
1. Complete-driver all-round
(1) It can drive a variety of motors: high-speed motor, electric spindle, variable frequency motor, AC servo motor, various synchronous motors and ordinary asynchronous motors
(2) Perfect motor parameter auto-turning function, which can achieve self-study of rotational and static motor parameters
2. Closed-loop Vector Control
More precise and powerful motor torque, speed and position control capacities
(1) Position control performance-Applicable for machinery positioning applications
(2) Torque and speed control performance ensure the motor operates stably and responds rapidly with small torque pulse
(3) Excellent weak magnetic control capacity to meet the requirements on rapid acceleration and deceleration
3. TÜV SÜD Product Certification
4. Special function for machine tool
5. User-friendly Interface
6. System Supporting Wiring Plan
