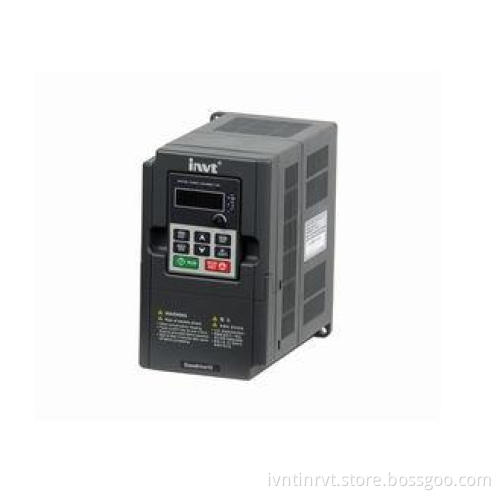

INVT Inverter Single Phase Vectorization VF Control , 220v

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

INVT Inverter Single Phase Vectorization VF Control , 220v inverter 60hz

Advantages

1.VF control;
2.Natural cooling(for the applications with cotton and dust);
3.Mini structure,less installation space.

Brief Introduction

Goodrive 10 Series mini economy inverters are designed for the small power OEM application market.With the function of vectorization VF control and PID function,multi step speed, DC braking and modbus communication and so on,the inverter has more advantages but occupied less istallation space.

Fatures

1. Standard modbus communication;
2. Built-in PID;
3.16 steps multi step speed control;
4. Flexible VF curve setting;
5. Multi function I/O terminal(the delay time can be set);
6. Fault protection at overcurrent,overvoltage,undervoltage,overtemperature and overload with detailed fault information;
7. DC braking,flux braking and resistor dynamic braking;
8. Overcurrent and overvoltage stall,stronger load adaptability;

9, Low voltage operating.

Applications

Packaging machinery,food machinery,textitle machinery,centrifuge,engraving machine,and cutting machine,etc.

Specifications

Function	Specification
Input Voltage(V)	Single phase 220(-15%)-240(+10%) Three phase 220(-15%)-240(+10%) Three phase 380(-15%)-440(+10%)
Input Frequency(Hz)	50Hz or 60Hz Allowed range:47-63Hz
Output Voltage(V)	Equal to input voltage with the deviation of less than 5%
Output Frequency(Hz)	50Hz/60Hz, Fluctuation range:±5%
Control mode	V/F
Maximum output frequency	400Hz
Adjustable-speed retio	1:100
Overload capability	150% of rated current:1 minute,180% of rated current:10 seconds, 200% of rated current:1 second
Terminal analog input resolution	≤20mV
Terminal switch input resolution	≤2ms
Analog input/output	1 input 0-10V/0-20mA; 1 output 0-10V/0-20mA
Digital input/output	5 common input, 1 Y output(commonly used with digital output) and 1 rogrammable relay output
Communication	485 communication
Mountable method	Wall mountable
Temperature of the running environment	-10 – 50℃,derate above 40℃
Cooling	Single/Three-phase 220V 0.2-0.75kW natural cooling
Cooling	Single/Three-phase 220V 1.5-2.2kW, Three-phase 380V 0.75-2.2kW
Fault protections	Overcurrent, overvoltage, undervoltage, overtemperature, overload and other protections
Braking unit	Only standard for GD10-B
