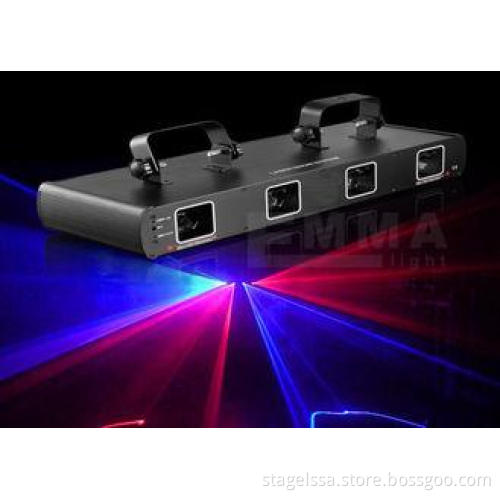

4 Lens DMX Laser Beam Lights 420mW , Red Blue Laser Light

• Input Voltage:110VAC/220VAC
  Frequency:50-60HZ
  Power consumption:80W
  Laser Power:R:650nm100mW B:450nm500mW
  Play Mode:Auto,sound active,DMX512,Master/slave
  lifetime: 〉8000h
  Operation Temperature:10-35℃
  Cooling Way:Fan cooling
  Machine Size:585*200*130mm
  Inside Packing Size/Weight:680*303*209mm/6.5kg
  Outer Packing Size/Weight:695*606*443mm /27kg
  Total Quantity:4

Features :

• Functions:more than one hundred of patterns,double red and double blue lasers beautiful effect from four apertures.

• Safety Capacity:Sound active mode with the function of shut-off if there is no music. Master/Slave mode (over ten slave units) and DMX512 mode will shut off laser automatically without trigger signal.It is designed according to the security and good performance,which will be safer to human and environment.

• Various working modes -----> Includes four working modes as DMX, Sound Active, AUTO and Master-Slave Control for different applications.

• Various programs -----> The four tunnel laser beam is compages, more than 50 laser patterns, over 200 laser effects.Different working modes has different program.

• DMX control -----> The unit has 7 channels to control in DMX mode. The unit has BLACK OUT function. The uint will shut OFF if no DMX512 signal.

• Master-Slave function -----> The system allow link many units (as slave unit) together to doing synchro job without console in sound active or AUTO mode.

• LED indicating and shut-off function -----> In sound active mode, the unit's panel has LED indicating for sound active. The unit will shut off after 8 seconds when the music stops.

• DPSS Laser-----> Use Diode-Pumped Solid State laser, stable output and long working life.

DIPS WITH CHART :

DMX Control Parameter Chart :
