i Alarm H.264 DVR/NVR System, TCP/IP GSM Monitoring Surveillence,
- Payment Type:
- T/T, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Bag/Bags
- Min. Order:
- 1 Bag/Bags
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 2000 |
| Supply Ability: | 2000 |
| Payment Type: | T/T,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS/FCC |
| Transportation: | Ocean,Land,Air |

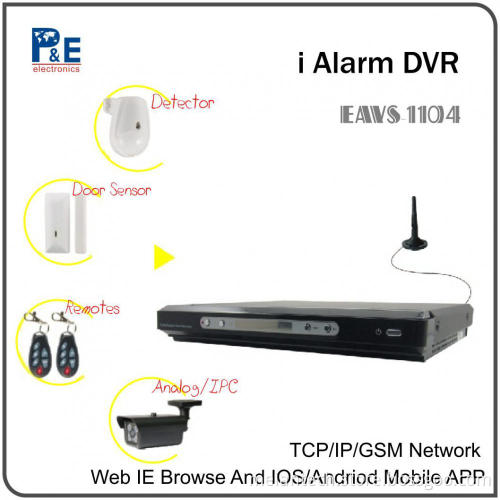

Welcome to use the TCP/IP Home Alarm CCTV Monitoring Surveillnce Intruder System , belongs to EAVS series of Meian company. it full name is Enternet-Alarm Video Server. Which is based on the embedded hardware and software based application technology, combined with advanced alarm technology and H.264 video compressiontechnology, built in GSM module, ethernet Port ( TCP/IP ), Auto-Dailed ( PSTN), work with Analog and IPC camera. Fully cooperated with current smart home appliance life. apply for the P2P service. let users experience it anything, anywhere and anytime in control.
|
Video Compression |
H.264 |
|
|
Video System |
NTSC / PAL |
|
|
Operation System |
Linux |
|
|
Input / Output |
Video |
BNC: 4-ch inputs / BNC: 1-ch output |
|
Audio |
RCA :4-ch inputs / RCA: 1-ch output |
|
|
Display |
Resolution |
NTSC: 704 x 480 / PAL: 704 x 576 |
|
Frame Rate |
NTSC: 120fps (240fps) / PAL: 100fps (200fps) |
|
|
Record |
Resolution |
NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) |
|
PAL: CIF(352x288) / HD1(704x288) / D1(704x576) |
||
|
Frame Rate |
NTSC: 30fps-D1 / 60fps-HD1 / 120fps-CIF |
|
|
PAL: 25fps-D1 / 50fps-HD1 / 100fps-CIF |
||
|
Feature |
Display |
Single / Quad / Nine |
|
Quality |
Best / Good / Normal |
|
|
Mode |
Schedule / Motion Detection / Sensor Triggered / Remote Recording |
|
|
HDD |
Interface |
1*SATA Fixed HDD |
|
capability |
SATA up to 2TB |
|
|
Playback Search |
Time & Date / Event List |
|
|
USB Interface |
USB 2.0 for Mouse and File Backup / Firmware Upgrade |
|
|
PTZ Control |
Built-in RS-485 / support PELCO-P & PELCO-D |
|
|
Wireless Antenna |
Receiving the Wireless Signal from Wireless Detector |
|
|
Wireless Function |
Support 24 / 56 channels Wireless Sensor Inputs |
|
|
Tel-Line Auto-Dial |
Support Tel-Line Auto-Dial with Pre-Recorded Voice Message |
|
|
Sensor & Alarm |
4-ch Sensor Inputs / 1-ch Alarm Output |
|
|
Network Interface |
RJ45, 10M/100M |
|
|
Network Protocol |
Support TCP/IP, DHCP, DNNS, PPPoE, CMS, FTP |
|
|
Network Function |
Support to Live View with IE (Internet Explorer) & with Mobile Phone |
|
|
Backup |
AVI file via USB flash / USB disk / USB CD/DVD RW & Network |
|
|
Playback Mode |
Normal Play / Fast Forward / Fast Rewind / Frame by Frame |
|
|
Recording Pack Time |
15/30/45/60mins Selectable |
|
|
VGA Output |
PC Monitor & Normal Monitor Switching |
|
|
Power Supply |
DC12V / 5A |
|
