Product Description

HOPERF has developed into the domestically first intact industry chain group company integrating ASIC chip design, MEMS sensor chip design, package test calibration technique and application services. HOPERF owns a top R & D design team with more than 80 persons globally and it has 16 years' experience in the industry, covered 33 countries and served for 1073 brand customers globally.

RF Advantages:
EEPROM configuration mode, the first of its kind in RF field, simplifies R&D design, saves raw materials Parameters flexibly configurable and modifiable with software, simple and user-friendly operations Adequate higher harmonic margin, easily passing various European and American safety certification Start level configurable and compatible with a variety of patterns
Different frequencies can be set with software without changing the crystal, reducing peripheral components

Parameter:
Part Number: CMT2110A CMT2117A CMT2113A
Frequency: 240~480 860~960 240~480MHz
(Support software settings)
Modulation Mode: OOK OOK (G)FSK
Data Rate: 0.5~30Kbps
Output Power: -10~+13dBm (Support software settings)
Output Power programmable with steps: 1dBm
Second Harmonics: 315\434M@+13dBm: -60dBm/-52dBm
Third Harmonics: 315\434M@+13dBm: -65dBm/-60dBm
Power Supply: 1.8~3.6V
Operating Current: 12.4mA(+10dBm\50% duty cycle\9.6Kbps)
Sleep Current: 20nA
Power On to Transmission Time: 0.8ms
Enter Sleep Time: 20~90ms (Support software settings)
PA Ramp Time: 0~1024us (Support software settings)
Start Level: Rise edge or fall edge: Settable by software
Stop Level: Low level
Crystal: 26MHz +/-20PPM
Load Capacitance: 12~20PF(Support software settings)
PLL Lock MODE: Dynamic lock
Program Limes: One million times
Operation Temperature: -40~+85
Chip Package: SOT23-6
IC Size: 2.92X1.9X1.1mm
Module Size: 17.8X12.8X5mm

Product Set:

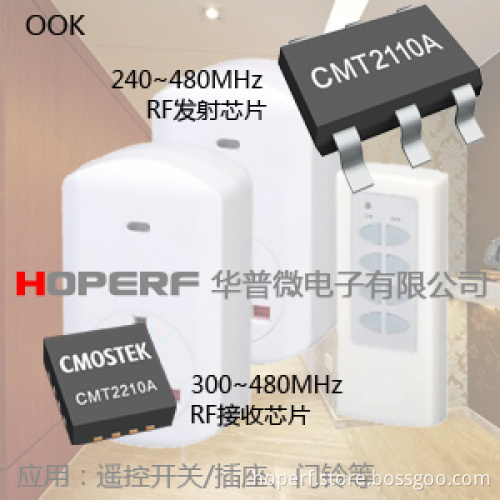

Set1: CMT2110A Pairing CMT2210A Set2: CMT2117A Pairing CMT2217A Set3: CMT2113A Pairing CMT2213A
