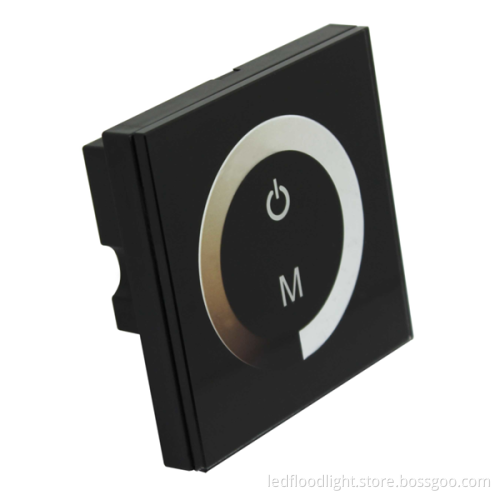

Touch Panel LED Dimmer for LED light

Touch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, such as soft article light; Has the wiring convenient, use the advantages of simple.

NS-TM06
1. Working temperature: -20-60 ℃
2. Supply voltage: DC12~24V
3. Output: 1 channels
4. Connection mode: common anode
5. External dimension: L86 Χ W86 Χ H37 mm
6. Packing size: L90 Χ W90 Χ H60 mm
7. Net weight: 125g
8. Gross weight: 150g
9. Static power: <1W
10. Output current: <8A
11. Output power: 12V<96W,24V<192W
