HD 4K Large Seamless LCD Video Wall Outdoor with 500nits Br
  • HD 4K Large Seamless LCD Video Wall Outdoor with 500nits Br
HD 4K Large Seamless LCD Video Wall Outdoor with 500nits Br

HD 4K Large Seamless LCD Video Wall Outdoor with 500nits Br

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

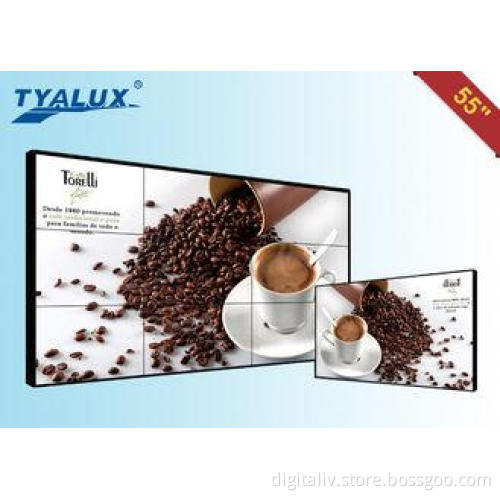

Seamless HD 4K Advertising Digital Signage Video Wall with 500nits Brightness

Description:

1: LCD product itself with low power consumption and last much longer

2: Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV

3: Ultra-narrow frame design seamless splicing photo quality

4: Support 365 days non-stop boot, the backlight life is up to 60,000 hours


Specifications:

Specifications

Model No.

TYL-SDID5509-B

Screen size

Samsung 55 inch lcd screen

Aspect Ratio

16:9

Resolution

1920*1080

Bezel width

5.3mm

Brightness (nits)

500cd/m2

Contrast

4500:1

Visual angle (H/V)

178°

Response time

<=8ms

Life(hrs)

>60,000(hrs)

Input and output

BNC out

1

BNC in

2

VGA in

1

HDMI in

1

DVI in

1

YPBPR in

1

Power

Power supply

AC100V~240V

Maximum power consumption

300W

Standby power consumption

<=3W

Temperature

Working temperature

0°C~50°C

Working humidity

20%-80%

Appearance

Panel dimension( W x H x D) mm

1215.3(L)*686(H)*155(D)mm

Acessory

Cable

Can supply different kinds of cable

Video Wall Controller(Built-in each screen)

Model No.

TYL-DP5509

Input

CVBS

3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs

VGA

1*D15 port, support SVGA/XGA/WXGA

YPbPr/YCbCr

1* YPbPr/YCbCr input, support PAL/NTSC all formats,
and 720P,1080I, HDTV

Y/C

2*BNC inputs, support PAL/NTSC all formats

Output

LVDS

Support signal or double LVDS output, and WUXGA (1920*1080)
display

Operate mode

Panel key operation(needs customization)

Standard RS232 port( provide free control software)

Infrared Remote Control Operation

Engineering software

Customized

Working temperature

0~70 °C

working humidity

5~95 %RH

AC voltage power supply

100-240V/50, 60Hz

power consumption

50W

Weight

About 3.5KG


Applications:

Government,Retail,Exhibition Halls,Movie Theaters,Fitness Halls,Massage Rooms,golf courses,bus & train station,restaurants,travel agencies,exclusive agencies,model rooms,Security Monitoring Center,Airport, Finacial


Why choose Weiguan Views:

1: Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.

2: Provide high quality products with competitive price & superior service.

3: Fast delivery. For standard model, sample is usually in stock. It can be shipped immediately after payment confirmation.

4: Our first-class service team, able to "we worry what customer worry, think what customers think," and to help all customers to solve all the worries.
