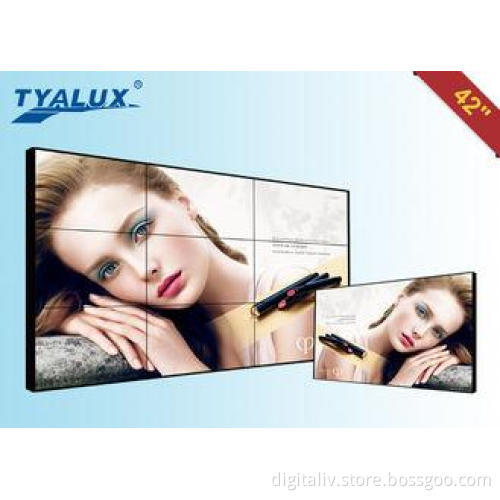

HD 1080P 500nits LCD Video Wall 3x3 Original Samsung Panel

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

HD 1080P 500nits LCD Video Wall 3*3 Original Samsung Panel for Advertisment

Description:

1: Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation.

2: Input and output interfaces ensure the product application with maximum compatibility and flexibility.

3: All metal casing. Anti-static, anti magnetic-field and tamper-proof.

4: Special cover design, installation and maintenance more convenient and simple

Specifications:

Specifications
Model No.		TYL-DID4209
Screen size		LG 42inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		20mm
Brightness (nits)		500cd/m2
Contrast		4000:1
Visual angle (H/V)		178°
Response time		<=8ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		170W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		957.5(L)550.2(H)120.7(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP4609
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

toll stations,parks,ticket agencies,HR markets,Banks,Movie Theaters,Fitness Halls,Massage Rooms,

Retail Shopping Mall Advertising,Public Installations, Massage Rooms,Bars,Beauty Shops,Subways,negotiable securities,gas stations

Why choose Weiguan Views:

1: We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements

2: Unique DNX motion supplement image processing technology, Dynamic image without motion trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,

3: Professional service and honesty based. Reply your inquiry in 8 working hours.

4: Qualified products. All of our product are qualified with CE/ROHS/FCC.
