vascular doppler

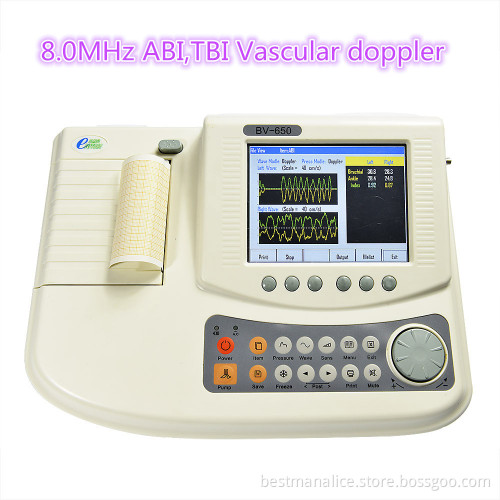

bidirection 8.0 MHz probe test ABI,TBI ultrasound vascular doppler

Feature:

l Obtains two pressures at each ankle site (PVR and DOPPLER)

l Automated segmental studies to customize the item

l Automatic ABI, TBI and segmental calculation

l Performs the Seated ABI on mobility impaired patients

l Bi-Directional Doppler probe

l PVR waveform modality & PPG probe to obtain toe and limb pressures

Specification:

l Ankle-brachial index(ABI),Toe-brachial Index ,segment exams, automatics calculation of the indices

l Control mode: automatic cuff inflation/deflation and hand-held controller

l Wave mode: Bi-directional Doppler, pulse volume recording(PVR), photoplethysmography(PPG)

l Doppler specification: Bi-directional continuous wave(CW), waveform amplitude accuracy:+/- 10%, 8MHz

l PPG specification: wave length 940nm, synchronous demodulation, AC paired

l PVR specification: bandwidth 0.16-12.5Hz, AC paried

l Display: 5.6inch, TFT, 640*480 RGB

l Printer: paper width 80mm, printing width 70mm, resolution 8points/mm

l Data storage and transmission: maximum store 100 patient`s data, transmission to computer via USB 2.0

l Power supply:100-204VAC, 50-60Hz

l Build-in battery:Ni-MH rechargeable batteries group, 12V 1800mAh

Certification:

The product approved by CE, Free sale certification. If you need copy of the files, please contact our sales.

Package:

l Single Unit Dimension: 42cm x 25cm x 32cm Gross Weight: 6kg

l Normative collocation: adapter, gel, operation manual, approval certification, warranty card, blood testing suite(adult and children cuff, toe cuff ),8Mhz probe,1*print paper.
