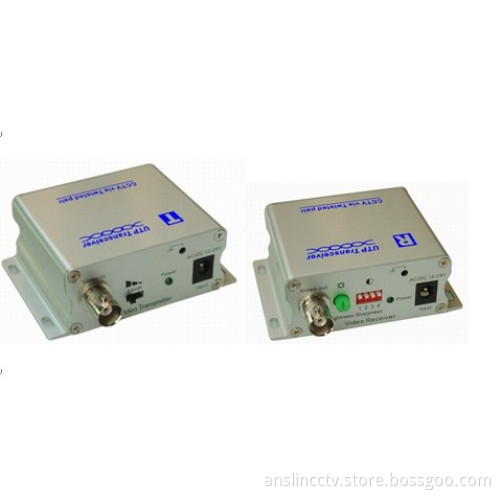

1Ch Active Video Balun
-
$5.501-0 Piece/Pieces
-
$6.00≥1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2000pcs/month |
| Supply Ability: | 2000pcs/month |
| Payment Type: | T/T |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Feature:
* Quality color and B&W video signals over 6000 feet (1800 m) of unshielded twisted pair wires
* NTSC, PAL , and SECAM video formats
* 12-24V wide input range and adapting AC or DC power input
* 60 dB crosstalk and noise immunity
* Outstanding interference rejection
* Compatible with all qualified UTP cameras
* Good application at Security and Surveillance, Elevator Surveillance, Video Conferencing , Video Distribution, P/T/Z control signals, PC Multimedia
* Quality color and B&W video signals over 6000 feet (1800 m) of unshielded twisted pair wires
* NTSC, PAL , and SECAM video formats
* 12-24V wide input range and adapting AC or DC power input
* 60 dB crosstalk and noise immunity
* Outstanding interference rejection
* Compatible with all qualified UTP cameras
* Good application at Security and Surveillance, Elevator Surveillance, Video Conferencing , Video Distribution, P/T/Z control signals, PC Multimedia
Specification:
|
Model No.
|
AL-120R
|
AL-120T
|
|
Transmission
|
Receiver
|
Transmitter
|
|
Frequency response
|
DC--8MHz
|
|
|
Material
|
Metal
|
|
|
Impedance
|
Twisted Pair 100ohms ; Coax 75ohms
|
|
|
Interface
|
2PIN UTP Terminal Block ; BNC (female) Connector ; DC Jack
|
|
|
Transmission distance
|
1800M
|
|
|
Power
|
AC or DC 12-24V
|
|
|
Wire Type
|
24-16AWG UTP CAT5 or higher;Loop DCR<18ohms/100m
|
|
|
Suppression
|
6000V 10uS*700uS IEC61000-4-5
|
|
|
Working Temperature
|
-20℃ ~ +70℃
|
|
|
Storage Temperature
|
-30℃ ~ +70℃
|
|
|
Humidity
|
0 ~ 90%
|
|
|
Dimengions
|
81X82X29mm(with BNC)
|
|
|
Weight(Net)
|
130g
|
|
Package contain:
Video Balun×1
