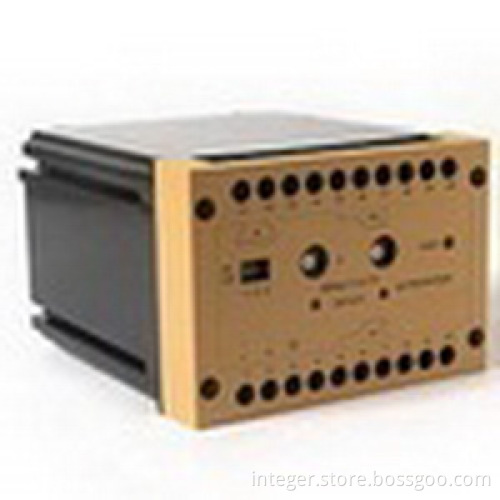

IVD-500 Single loop vehicle detector for entrance and exit of Parking Lot

 ILD-500 Single Channel Vehicle Loop Detector

   IVD-500 is used for wherever vehicles have to be detected, for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots. It uses the advanced microprocessor technology, and can work in diverse environments.

 IVD-500 has two-way output relays. One is unlimited output when loop is permanently covered,while the other is multi-mode that can be set by users

 Technical data

Operating voltages:           220V AC±10%

Power consumption:         < 5W

Output:                             Relay output

Frequency range:              20kHz to 170kHz (4 grades adjustable)

Reaction time:                20 ms

Sensitivity:                        10 grades adjustable

Loop inductance:              Ideal 100~300µH (include connecting wiring)

                                         Max 50µH~1000µH (include connecting wiring)

Loop conn. Wiring:           Max. 100m, twisted at least 20 times per meter, total resistance <10 Ohm

Operating temp.:              -30℃ to +75℃

Storage temp.:                 -40℃ to +85℃

Relative humidity:              ≤ 95%

 Connection:                     11-pin socket

Shell:                               PC + ABS engineering plastics

Installation:                      DIN rail

Dimensions:                    110×60×100 mm (L×W×H)

Net Weight:                    400g (include socket)
