Product Description

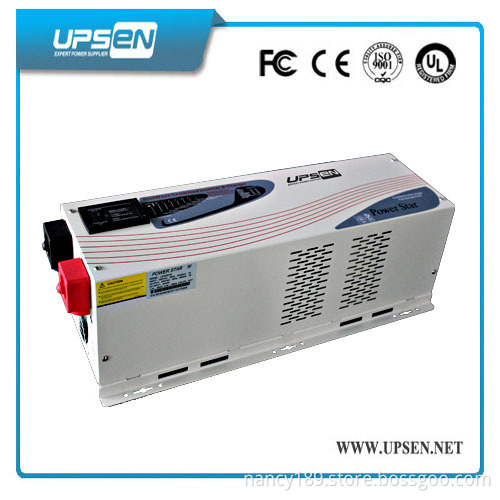

High-efficiency Pure Sine Wave Off grid Solar Inverter UPS

Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)

Inverter Quick Overview
1: Hybrid Off Grid Solar Inverter with 12VDC 24VDC 48VDC to 110Vac 120Vac or 220Vac 230Vac 240Vac
2: Inverter with remote control function
3: High power factor 0.9, low power consumption
4: Hybrid Inverter with both DC and AC Input

Key Features

1:Pure sine wave output (THD<3%), available for sensitive loads
2:High efficiency up to 95% under line mode, and 88% for Battery Mode
3:Can work with inductive load such as air conditioner, motor door etc
4:4-step progressive charging, 7 battery type selector
5:Accept generator's energy output
6:Automatically transfer between battery and line modes
7:Microprocessor control guarantees high reliability
8:Bypass without battery connected
9:Under-voltage/over-voltage: LED red light, automatic recovery
10:Protection against:Over load, over temperature, over charging, low battery
11:Automatically transfer between battery and line modes
12:Multiple protection: Input low voltage / Overload / Short circuit / Low battery alarm / Input over voltage / Over temperature

Application

UPSEN Power Srar Inverter can be used for TV sets, fans, car bridges, washing machines, rice cookers, travels, camping, emergency first-aid facilities etc.

Technical Specification

Power Star Series
Model No.	PS1000	PS2000	PS3000	PS4000	PS5000	PS6000
Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W
AC Input
Waveform	Pure Sine Wave
Voltage	120VAC/230VAC
Acceptable Voltage	194-243VAC164-243VAC(wide mode)
Line Low Transfer	85V±4%/184(154 wide mode±4%)
Line Low Return	95V±4%/194(164 wide mode±4%)
Line high Transfer	135V±4%/253±4%
Line high Return	127V±4%/243±4%
Frequency	50Hz or 60Hz (Auto sensing)
Line Low Transfer	47Hz for 50Hz, 57Hz for 60Hz
Line high Transfer	55Hz for 50Hz, 65Hz for 60Hz
AC Output
Waveform	Pure Sine Wave(bypass mode sync to input)
Voltage	120/220/230/240VAC(bypass mode sync to input)
Voltage Regulation	±10%rms(bypass mode sync to input)
Frequency	50Hz±0.3Hz(bypass mode sync to input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes,shutdown after 10ms
Power Factor	0.9-1.0
DC Input
Battery Voltage	12V/24V	12V/24V/48V		24V/48V
Minimum Start Voltage	10V for 12V,20V for 24V,40V for 48V
Low Battery Alarm	10.5V for 12V,21V for 24V,42V for 48V
Low Battery Transfer	10V for 12V,20V for 24V,40V for 48V
High Voltage Alarm	16V for 12V,32V for 24V,64V for 48V
Max Charging Current	35A/70A
Over Charge Voltage	15.7V for 12V,31.4V for 24V,62.8V for 48V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
power saver	Available when the load is less than 25 Watts
Indicators
7-LED Display	From the right to the left,LED1 line mode (green lighting),LED2 inverter mode
	(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged
	(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded
	shutdown (red lighting) ,LED7 Saving Mode (green lighting)
3-LED Display	Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting)
Switch selector	Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off.

Audible Alarm	Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds.
Protections	low battery,over charging,over temp,over load
Communications	RS-232/USB(custom-made)
Enviromental
Operating Environment	0-40ºC,0-90%RH(non-condensing)
Audible Noise	<60dB
Physical
Net Weight(KG)	18	20	22	35	38	40
Dimension LWH(mm)	442218179mm			598218179mm

* Specification is subject to change without prior notice.

Competitive Advantages:

1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
