12V / 24V/ 48VDC Single Phase Hybrid Solar Inverter with Charger

USD100

≥5 Piece/Pieces

Payment Type:: L/C, T/T, Money Gram, Western Union

Incoterm:: FOB, CFR, CIF, CIP

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50, 000PCS/Month
Supply Ability:	50, 000PCS/Month
Payment Type:	L/C,T/T,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,CIP
Certificate:	CE, ISO, RoHS
Transportation:	Ocean,Air

Product Description

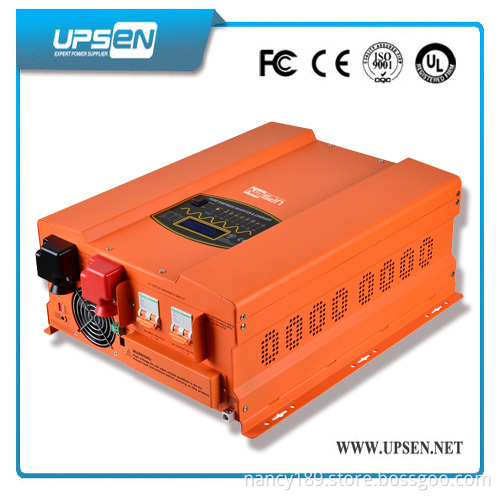

12V / 24V/ 48Vdc single phase Hybrid Solar inverter with charger
Pure Sine Wave Inverter Charger Hanker Power Star Series 1KW-12KW (1ph in/1ph out)

HP Series Pure Sine Wave Inverter is a combination of an inverter, charger, solar power and Auto-transfer switch into one complete system . It is packed with unique features and it is one of the most advanced
inverter/chargers in the market today.

Feature of HP Series Inverter & Charger
1:Ability to select/deselect power saver mode
2:Optional LCD display and Remote control swtich
3:Less power consumption than convertional units
4:Selectable charging current based on applications
5:Pure sine wave output, available for sensitive load
6:High conversion efficiency, low temperature rise, low noise
7:Feature-rich, stable and reliable, with high cost performance
8:Smart battery charger design to optimize battery performance
9:With independent patent technology to run and control automatically
10:PFC(Power Factor Correction) for charger, less power consumption than conventional units

Application
Office Equipment,Notebook Computer,Remote switching,Control equipment,Communication systems,Portable lights,Alarm systems,Power tools,Acoustics,monitor,security systems,information center etc.

Technical Specification
	Model	HP1K	HP1.5K	HP2K	HP3K	HP4K	HP5K	HP6K	HP8K	HP10K	HP12K
Inverter Output	Continuous Output Power	1.0KW	1.5KW	2.0KW	3.0KW	4.0KW	5.0KW	6.0KW	8.0KW	10.0KW	12.0KW
	Surge Rating(20s)	3.0KW	4.5KW	6.0KW	9.0KW	12.0KW	15.0KW	18.0KW	24.0KW	30.0KW	36.0KW
	Output Waveform	Pure Sine wave/Same as input(Bypass Mode)
	Nominal Efficiency	>88%(Peak)
	Line Mode Efficiency	>95%
	Power Factor	0.9-1.0
	Nominal Output Voltage rms	100-110-120Vac / 220-230-240Vac
	Output Voltage Regulation	±10% RMS
	Output Frequency	50Hz ± 0.3Hz/60Hz ± 0.3Hz
	Short Circuit Protection	Yes( 1sec after fault )
	Typical transfer Time	10ms(Max)
	THD	< 10%
DC Input	Nominal Input Voltage	12.0Vdc
		( 2 for 24Vdc, 4 for 48Vdc)
	Minimum Start Voltage	10.0Vdc
	Low Battery Alarm	10.5Vdc / 11.0Vdc
	Low Battery Trip	10.0Vdc / 10.5Vdc
	High Voltage Alarm	16.0Vdc
	Low Battery voltage recover	15.5Vdc
	Idle Consumption -Search Mode	< 25 W when Power Saver On
Charger	Output Voltage	Depends on battery type
	Charger Breaker Rating	10A	15A	20A	20A	20A	30A	30A	40A	40A	40A
	Max Charge Power Rate	1/3 Rating Power
	Battery Initial Voltage for Start Up	10-15.7V for 12V( 2 for 24V, 4 for 48V)
	Over Charge Protection Shutdown	15.7V for 12V (2 for 24V, 4 for 48V)
	Remote Control	Yes(Optional)
Bypass & Protection	Input Voltage Waveform	Sine wave (Grid or Generator)
	Nominal Voltage	110Vac		120Vac		220Vac	230Vac
	Max Input AC Voltage	150VAC For 120Vac LV Mode;300VAC For 230Vac HV Mode;
	Nominal Input Frequency	50Hz or 60Hz (Auto detect)
	Low Freq Trip	47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
	High Freq Trip	55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
	Overload protection (SMPS load)	Circuit breaker
	Output Short circuit protection	Circuit breaker
	Bypass breaker rating	10A	15A	20A	30A	40A	40A	40A	50A	63A	63A
	Transfer switch rating	30amp for UL & TUV				40amp for UL			80amp for UL
	Bypass without battery connected	Yes (Optional)
	Max bypass current	30amp				40amp			80amp
Solar Charger (Optional)	Rated Voltage	12Vdc / 24Vdc / 48Vdc
	Solar Input Voltage Range	15-30Vdc / 30-55Vdc / 55-100Vdc
	Rated Charge Current	40 ~ 60A
	Rated Output Current	15A
	Self Consumption	< 10mA
	Bulk Charge	14.5V(default)					(2 for 24Vdc, 4 for 48Vdc)
	Floating Charge	13.5V(default)
	Equalization Charge	14.0V(default)
	Over Charge Disconnection	14.8V
	Over Charge Recovery	13.6V
	Over Discharge Disconnection	10.8 V(default)
	Over Discharge Reconnection	12.3V
	Temperature Compensation	-13.2mV/°C
	Ambient Temperature	0 ~ 40°C(Full load) 40 ~ 60°C(Derating)
Mechanical Spec	Mounting	Wall Mount
	Inverter Dimensions(LWH)	388415200mm				488415200mm			588415200mm
	Inverter Weight (Solar Chg)KG	21+2.5	22+2.5	23+2.5	27+2.5	38+2.5	48+2.5	49+2.5	60+2.5	66+2.5	70+2.5
	Shipping Dimensions(LWH)	550520310mm				650520310mm			750520310mm
	Shipping Weight (Solar Chg)KG	23+2.5	24+2.5	25+2.5	29+2.5	40+2.5	50+2.5	51+2.5	62+2.5	68+2.5	72+2.5
	Display	Status LEDs / Status LEDs+LCD
	Standard Warranty	3 Years (Optional)
