Single Mode Fiber Optic Cable Per Meter Price
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 150000 |
| Supply Ability: | 15000 |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air |

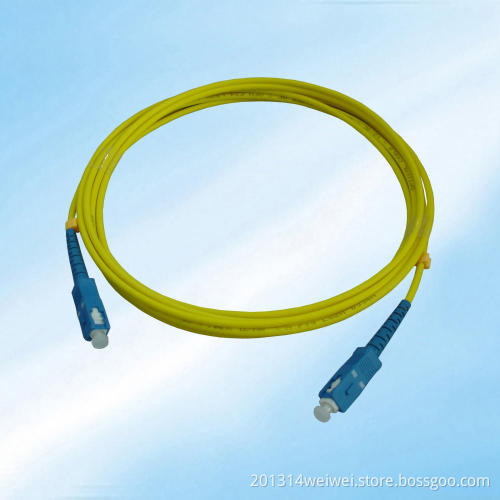

SC sx mm fiber optic patch cord
SC fiber optic patch cord is available in both single-mode and multimode versions. Both single-mode and multimode versions LC fiber patch come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
Features:
1,Standard exact plastic material
2,Small, light, high dense connection
3,Push-pull RJ-45 lockable structure, easy for operation
4,Good in repeatability
5,Good in exchange
Application:
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Medical
Parameter:
|
Fiber Optic Patch Cord |
|
|
Parameter & Specification |
|
|
Mode |
Single-mode ,Multi-mode |
|
Type |
FC,LC,SC,ST,MU,MTRJ,MPO,E2000 |
|
Polishing |
APC,UPC,PC |
|
Insertion Loss(dB) |
≤0.2 , ≤0.3 |
|
Return Loss(dB) |
≥50, ≥65 |
|
Exchangeability(dB) |
≤0.2 |
|
Repeatability(db/1000times) |
≤0.2 |
|
Operation Wavelenghth(nm) |
850,1310,1550 |
|
Operating Temperature(°C) |
-30 ~ +75 |
|
Storage Temperature (°C) |
-40 ~ +85 |
|
Cable OD(mm) |
0.9 ,2.0 ,3.0 |
|
Cable Material |
OFNR,LDZH&Polarization maintaining- |
